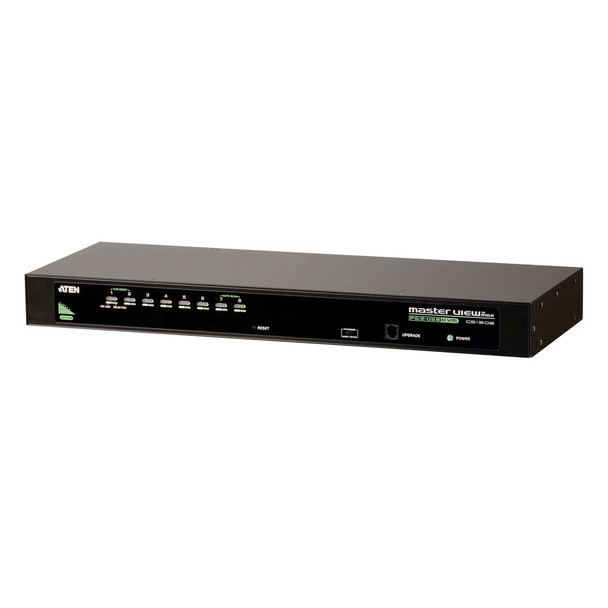

Aten CS1308 8-Port PS/2 and USB KVM Switch Black CS1308

The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Features


One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers


Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc


Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu


Video DynaSync� - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports



Design


Cascadable

Yes


Push button

Yes


Product colour

Black


Hot keys

Yes


Rack mounting

Yes


Housing material

Metal


Rack capacity

1U



Weight & dimensions


Height

44 mm


Width

161.3 mm


Depth

437.2 mm


Weight

1.89 kg



Packaging content


Rubber feet

Yes


Rack mount kit

Yes


Quick installation guide

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

375 mm


Master (outer) case height

258 mm


Products per master (outer) case

3 pc(s)


Harmonized System (HS) code

85176200


Master (outer) case length

565 mm


Master (outer) case net weight

6.72 kg


Master (outer) case gross weight

8.7 kg



Sustainability


Sustainability certificates

RoHS



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


Number of computers controlled

64


VGA (D-Sub) ports quantity

8


Keyboard port type

USB, PS/2


Console ports

VGA (D-Sub)


Mouse port type

USB, PS/2


Video port type

VGA


DC-in jack

Yes



Performance


Maximum resolution

2048 x 1536 pixels


Scan interval

1,255 s


HD type

QXGA


Firmware upgradeable

Yes


DDC2B support

Yes



System requirements


Windows operating systems supported

Yes


Other operating systems supported

Yes


Mac operating systems supported

Yes


Linux operating systems supported

Yes



Power


Power consumption (typical)

5 W


Power source

DC


DC input voltage

5.3 V



Display


Built-in display

No



Packaging data


Package height

233 mm


Package depth

540 mm


Package width

116 mm


Package weight

2.69 kg
