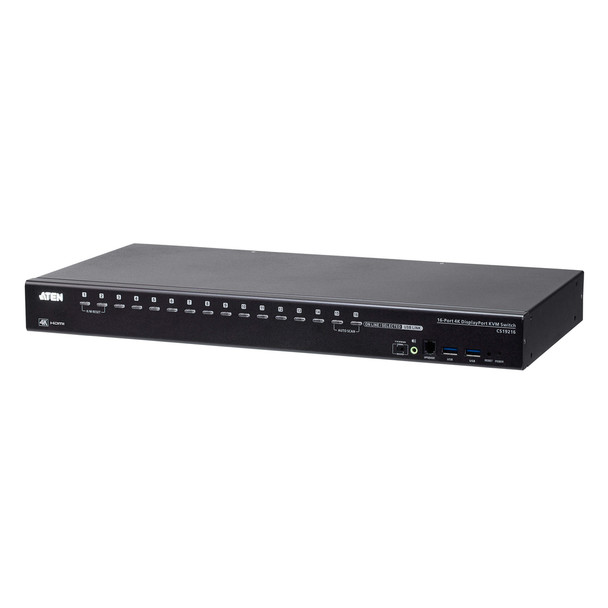

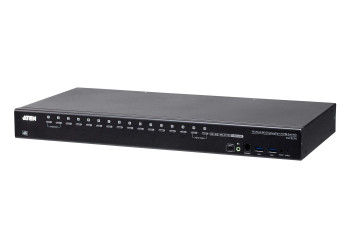

ATEN CS19216 4096 x 2160 pixels 4K Ultra HD Rack mounting 1U 26.66 W Black CS19216

The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.

To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi-display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.

With two patented ATEN technology - Video DynaSync and EDID Expert, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.

Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.

To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19216 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.

Features


One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices


Cascadable to two levels - controls up to 256 computers1


Multi-Display feature - stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)


Video DynaSync - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources


EDID Expert - selects optimum EDID mode for smooth power-up and highest quality display


Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility


Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)


Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates


Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound


Supports HD audio2


Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands


Independent switching of KVM and USB peripheral focus3


Two-level (administrator/user) password authorization for enhanced security protection


Broadcast mode - operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.


Auto Scan Mode for monitoring all computers


Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice


Multilingual keyboard mapping - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese


Mac/Sun keyboard support and emulation4


Supports hot-plugging


DisplayPort 1.2 compliant; HDCP 2.2 compliant


Multiplatform support - Windows, Linux, Mac, and Sun


Firmware upgradable


Supports multimedia, wireless keyboards and mouse


Note:

1. Cascading between CS19208 and CS19216 is available.


2. HD audio through HDMI and DisplayPort channel cannot be switched independently.


3. Independent switching is only supported under mouse emulation mode.


4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.



Design


Push button

Yes


Product colour

Black


Housing material

Metal


LED indicators

Yes


Cascadable

Yes


Hot keys

Yes


Rack mounting

Yes


Rack capacity

1U



Weight & dimensions


Height

44 mm


Width

432.4 mm


Depth

214.3 mm


Weight

3.54 kg



Operational conditions


Operating relative humidity (H-H)

0 - 80


Storage relative humidity (H-H)

0 - 80


Operating temperature (T-T)

0 - 40 C


Storage temperature (T-T)

-20 - 60 C



Ports & interfaces


USB connector type

USB Type-A, USB Type-B


Audio connections

Yes


DisplayPort version

1.2


Keyboard port type

USB


DisplayPorts quantity



Number of computers controlled



USB 3?2 Gen 1 (3?1 Gen 1) Type-A hub ports quantity

2


Mouse port type

USB


Video port type

DisplayPort


DC-in jack

Yes


Console USB ports quantity

2


USB hub

Yes


Serial ports quantity

1


Headphone outputs



Console ports

3.5mm headphone, DisplayPort, HDMI, USB A



Performance


Maximum resolution

4096 x 2160 pixels


HDCP

Yes


HD type

4K Ultra HD


Firmware upgradeable

Yes


Scan interval

255 s


Hot-Plug support

Yes



System requirements


Windows operating systems supported

Yes


Mac operating systems supported

Yes


Linux operating systems supported

Yes



Power


Power consumption (typical)

26.66 W


External power adapter

Yes


Power source

AC



Display


Built-in display

No


On Screen Display (OSD)

Yes
