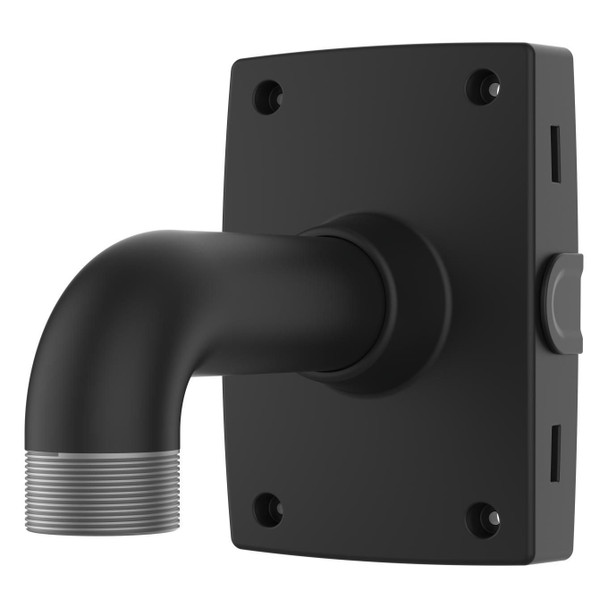

Axis 02961-001 TP3301-E Pole Mount Black 02961-001

AXIS TP3301-E Pole Mount Black

The outdoor-ready AXIS TP3301-E Pole Mount Black has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS TP3301-E is intended for poles with a diameter between 65�165 mm (2 1/2�6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.

Ergonomics



Maximum weight capacity



15 kg


Features



Brand compatibility



Axis


Certification



IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10


Compatibility



AXIS P32/P37/Q35/Q36 (requires camera-specific pendant kit)


Housing material



Aluminium


IK code



IK10


Placement supported



Universal


Product colour



Black


Type



Mount


Package dimensions



Depth (package,cm)



32.5 cm


Gross Weight (Package, kg)



1.52 kg


Height (package,cm)



20.1 cm


Width (package,cm)



24.7 cm


Packaging content



Quick installation guide



Yes


Product dimensions



Net Weight (Product, kg)



1.2 kg


Product Depth



24.41 cm


Product Height



19.48 cm


Product Width



13.83 cm


Technical details



Doesn't contain



PVC


Vendor information



Brand Name


Axis
