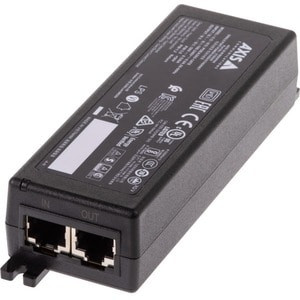

Axis Poe Injector 120 V Ac 230 V Ac Input 56 V Dc Output 1 X Ethernet Input Port 02172-002

AXIS PoE Injector - 120 V AC, 230 V AC Input - 56 V DC Output - 1 x Ethernet Input Port(s) - 1 x PoE Output Port(s) - 30 W - Black AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure.
Interfaces/Ports

Input Ports1 x Ethernet
Output Ports1 x PoE

General Information

Product TypePoE Injector
Manufacturer Part Number02172002
axis/uk
ManufacturerAxis Communications
Product Name30W Midspan
Brand NameAXIS

Miscellaneous

CompatibilityAXIS Door Controllers:A1001
A1601
AXIS Fixed Cameras:M1065-L
M1134
M1135
M1135-E
M1137
M1137-E
M1145-L
M2025-LE
M2026-LE Mk II
P1214
P1214-E
P1224-E
P1244
P1245
P1254
P1264
P1265
P1275
P1375
P1375-E
P1377
P1377-LE
P1378
P1378-LE
P1445-LE-3
P1447-LE
P1448-LE
P1455-LE
Q1615 Mk III
Q1615-LE Mk III
Q1645
Q1645-LE
Q1647
Q1647-LE
Q1659
Q1700-LE
Q1785-LE
Q1786-LE
Q1798-LE
AXIS Fixed Dome Cameras:M3015
M3016
M3037-PVE
M3057-PLVE
M3058-PLVE
M3064-V
M3065-V
M3066-V
M3067-P
M3068-P
M3075-V
M3115-LVE
M3116-LVE
M3205-LVE
M3206-LVE
M4206-LV
M4206-V
P3227-LV
P3227-LVE
P3228-LV
P3228-LVE
P3245-LV
P3245-LVE
P3245-V
P3245-VE
P3247-LV
P3247-LVE
P3248-LV
P3248-LVE
P3255-LVE
P3367-V
P3367-VE
P3374-LV
P3374-V
P3375-LV
P3375-LVE
P3375-V
P3375-VE
P3715-PLVE
P3717-PLE
P3719-PLE
P3807-PVE
P3904-R Mk II
P3905-R Mk II
P3925-R
P3935-LR
P9106-V
Q3515-LV
Q3515-LVE
Q3517-LV
Q3517-LVE
Q3517-SLVE
Q3518-LVE
Q3527-LVE
Q3615-VE
Q3617-VE
Q3708-PVE
Q3709-PVE
Q9216-SLV
AXIS Housings:T92E20 Outdoor Housing
T92G20 Outdoor Housing
T93F20 Outdoor Housing
AXIS I/O Relay Modules:A9161
A9188
A9188-VE.
AXIS Illuminators:T90C20 Fixed Dome IR-LED
T90D20 PoE IR-LED
T90D25 PoE W-LED
AXIS Intercoms:A8207-VE Mk II
I8016-LVE
AXIS Modular Cameras:F34 Main Unit
F34 Surveillance system
F41 Main Unit
F44 Dual Audio Input
AXIS Mounts:T91G61 Wall Mount
T91H61 Wall Mount
AXIS PTZ Cameras:M5054
M5055
M5065
M5525-E
P5414-E
P5415-E
P5654-E
P5655-E
Q6074
Q6074-E
Q6075
Q6075-E
Q6128-E
Q6154-E
Q6155-E
AXIS PoE Extenders:
Long Range PoE Extender Kit

AXIS Power over Ethernet:PoE Splitter 5V
AXIS Security Radars:D2110-VE Security Radar
AXIS Speakers:
C1310-E
C1410
AXIS Thermal Cameras:P1280-E
P1290-E
Q1941-E
Q1941-E PT Mount
Q1942-E
Q1942-E PT Mount
Q2901-E
Q2901-E PT Mount
AXIS Video Encoders:M7104
P7304
Q7411
Q7424-R Mk II

Certifications & StandardsIEEE 802.3af
IEEE 802.3at
Safety: IS13252
UL60950-1
UL62368-1
CCC
EMC: EN55024
EN55032ClassA
EN61000-6-1
EN61000-6-2
FCCPart15SubpartBClassA
ICES-3(A)/NMB-3(A)
KCKN32ClassA
KCKN35
RCMAS/NZSCISPR32ClassA
VCCIClassA
CISPR24
EAC
Environment: IEC60068-2-1
IEC60068-2-2
IEC60068-2-6
IEC60068-2-14
IEC60068-2-27
IEC60068-2-78

Country of OriginVietnam
Environmentally FriendlyYes
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)


Power Description

Input Voltage120 V AC
230 V AC
Maximum Frequency63 Hz
Minimum Frequency47 Hz
Maximum Output Power30 W
Maximum Output Voltage56 V DC

Physical Characteristics

Weight (Approximate)145 g
Form FactorWall/Shelf/DIN Rail Mountable
Height30 mm
Width46 mm
Depth140.1 mm
Product ColorBlack
Color FamilyBlack
