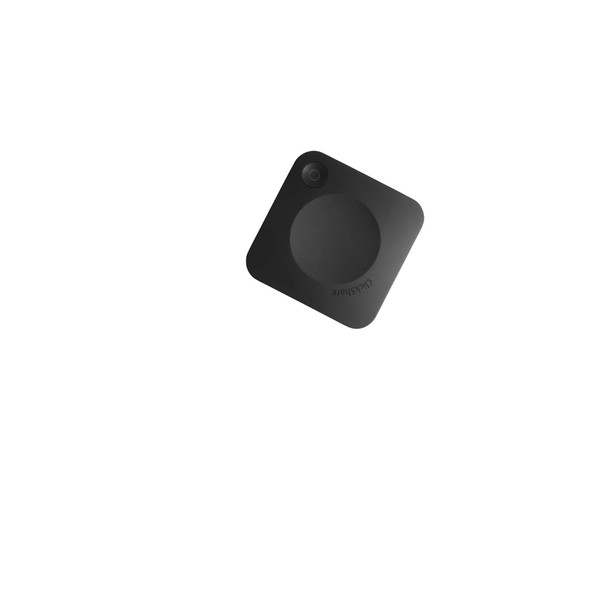

Barco ClickShare C-5 Gen 2 Set EU R9861605EU

Simple, one-click wireless presentation for huddle spaces

The ClickShare C-5 brings simple, wireless collaboration to small meeting rooms and huddle spaces. You and your guests can easily share content to the room display, with just one click in the ClickShare App, from any laptop or mobile device. It offers a full BYOD experience, including screen mirroring with Airplay, GoogleCast and Miracast.

Easy content sharing for huddle and small spaces
Inspire and engage with wireless presentation to any screen
Add digital signage capabilities in any huddle space
Enhanced security, cloud managed and connected solution
ClickShare Button sold separately

SmartCare so you can be carefree
Service package included with all ClickShare devices
Reliable service with direct vendor support
5 years of extended hardware coverage, no replacement costs, software upgrades included
5 years of analytics and insights subscription via XMS Cloud

Make the best out of your ClickShare devices
Efficient management platform to maintain, manage and monitor your ClickShare fleet
The right tool to increase your meeting rooms� ROI
Easy to stay up to date and act upon notifications
Secure environment that keeps your data safe

ClickShare's commitment to sustainability
Made with better materials
Non-paint plastics & halogen-free PCB in products.
Lighter and ecological packaging choices.

Designed for recycling
Reducing parts where possible.
Materials easy to disassemble after use.

Energy saving
High power efficiency.
Helps to reduce your power consumption.

Carbon neutral
Committed to lowering our and our customers� carbon footprint.
Barco ECO label: A++

Features


Entry-level wireless presentation model


Content sharing with the ClickShare App and native BYOD


100% secure, encrypted and cloud managed



Design


Cable lock slot type

Kensington


Cable lock slot

Yes


Product colour

Black


Form factor

Dongle


Certification

FCC, CE


LED indicators

Yes



Weight & dimensions


Height

34 mm


Width

135 mm


Depth

135 mm


Weight

900 g



Network


Dual-band

Yes


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1


Maximum operating distance

30 m


Wi-Fi standards

802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


Security algorithms

802.1x RADIUS, WPA2-PSK


Top Wi-Fi standard

Wi-Fi 5 (802.11ac)


Frequency band

2.4, 5 GHz


Ethernet LAN

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Features


Number of simultaneously connected devices (max)

32


AirPlay mirroring

Yes


Maximum resolution (HDMI)

3840 x 2160 pixels


Supported video streaming resolutions

4096 x 2160


Miracast

Yes


Maximum frame rate

30 fps


Smartphone/tablet remote support

Yes


Supported video modes

2160p



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 85


Storage relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

1


Ethernet LAN (RJ-45) ports

1


HDMI version

1.4b


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


DC-in jack

Yes


Interface

HDMI


Number of HDMI outputs

1



Management features


Web-based management

Yes


On/off switch

Yes



System requirements


Windows operating systems supported

Yes


Mac compatibility

Yes


Mac operating systems supported

Yes


Mobile operating systems supported

Android, iOS



Power


Input voltage

110 - 220 V


Power consumption (typical)

10 W


Power source type

AC, USB


Power consumption (max)

24 W
