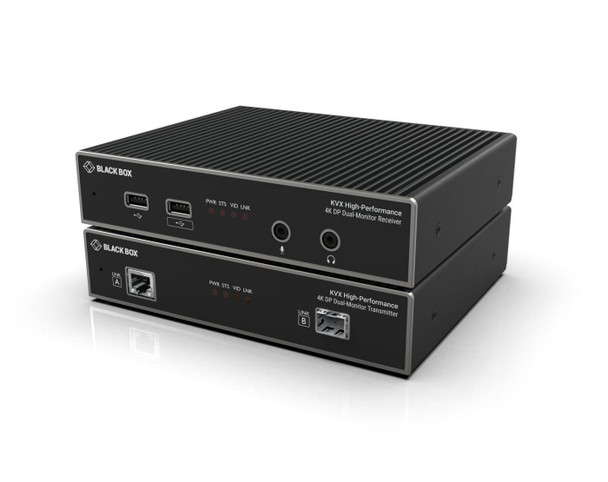

Black Box KVXHP-200-RX KVX HP SERIES DISPLAYPORT KVXHP-200-RX

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-200 supports dual monitor setups with up to 4096x2160 at 60Hz using 8 bits per color, 4:4:4 chroma sampling, and High-Speed Transparent USB 2.0 - all transmitted over a single cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.

19� Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19� rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.

Single-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.

Features



Cable types supported



Cat5e, Cat6


Connectivity technology



Wired


LED indicators



Yes


Material



Metal


Maximum digital resolution



4096 x 2160 Pixels


Maximum refresh rate



60 Hz


Maximum transfer distance



4000 m


Product colour



Black


Type



Transmitter & receiver


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-10 - 50 �C


Package dimensions



Gross Weight (Package, kg)



6.31 kg


Packaging content



Cables included



AC


Ports & interfaces



USB port type



USB Type-A


Product dimensions



Net Weight (Product, kg)



6.3 kg


Product Depth



32.51 cm


Product Height



9.47 cm


Product Width



48.59 cm


Receiver



Receiver local video port type



DisplayPort


RJ-45 ports quantity (receiver)



1


Transmitter



RJ-45 ports quantity (transmitter)



1


Transmitter video port type



DisplayPort


Vendor information



Brand Name


Black Box


Warranty



2 Year(s)


Weight & dimensions



Receiver depth



14.8 cm


Receiver height



3.9 cm


Receiver weight



1.24 kg


Receiver width



18.6 cm


Transmitter depth



14.8 cm


Transmitter height



3.9 cm


Transmitter weight



1.29 kg


Transmitter width



18.6 cm
