Brother DS-940DW 215.9 x 1828.8 mm 600 x 600 DPI 1200 x 1200 DPI 48 bit 24 bit 1 DS940DWTJ1

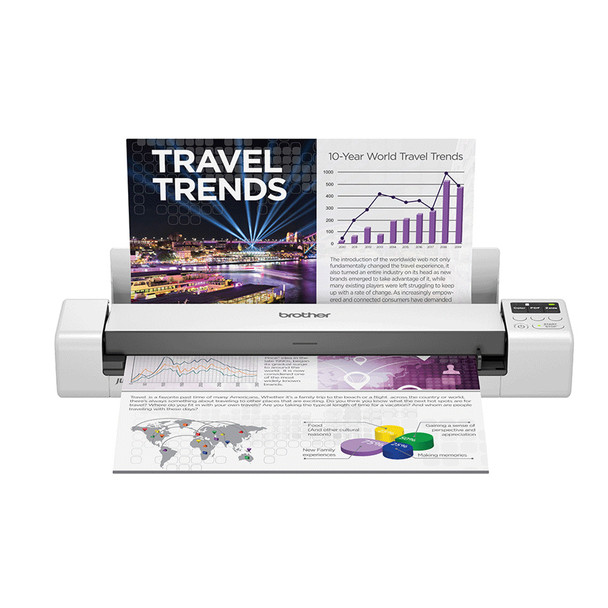

Brother DSmobile DS-940DW Wireless, 2-sided Portable Document Scanner
Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.

The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple.

Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit.

With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.

Features


Automatic 2-sided A4 scanning up to 15 pages per minute


Space saving 'U-path' paper feed system


Industry leading software to scan documents, receipts and ID cards


Power directly from a USB 3.0 port on PC


Built-in rechargeable battery and card reader


Connect to a wireless network or Brother mobile app



Scanning


Colour scanning

Yes


ADF scan speed (b/w, A4)
ppm


Optical scanning resolution

600 x 600 DPI


Black/white scanning colour modes

Grayscale, Monochrome


Duplex scanning

Yes


Maximum scan size

215.9 x 1828.8 mm


ADF scan speed (colour, A4)
ppm


Input colour depth

48 bit


Enhanced scan resolution
00 x 1200 DPI


Duplex ADF scan speed (colour, A4)

30 ipm


Output colour depth

24 bit



Input capacity


Standard input capacity

1 sheets



Ports & interfaces


Standard interfaces

USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN


USB connector type

Micro-USB B


USB version

3.2 Gen 1 (3.1 Gen 1)


USB port

Yes



System requirements


Windows operating systems supported

Yes


Mac operating systems supported

Yes


Linux operating systems supported

Yes



Design


Scanner type

Sheet-fed scanner


Built-in display

No


Product colour

Black, White



Paper handling


Maximum ISO A-series paper size

A4


Maximum scan length
2.9 cm


Scanning media types supported

Business Card, Plain paper, Plastic Card


Maximum scan width

21.6 cm


Card thickness (max)

1.24 mm



Weight & dimensions


Height

45.4 mm


Width

319 mm


Depth

63.1 mm


Weight

699 g



Packaging content


Cables included

Micro-USB


Warranty card

Yes


Quick start guide

Yes



Logistics data


Harmonized System (HS) code

84716070



Network


Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)


Security algorithms

64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK


Supported network protocols (IPv4)

DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client


Wi-Fi

Yes


Wi-Fi Direct

Yes



Operational conditions


Operating temperature (T-T)

5 - 35 -C


Operating relative humidity (H-H)
- 80


Storage relative humidity (H-H)
- 90


Storage temperature (T-T)

-20 - 60 -C



Performance


Scan to

E-mail, File, Image, Memory card, OCR


Sound pressure level (max)

42 dB


Scanning noise level

53 dB


Internal memory

512 MB


Compatible memory cards

MicroSD (TransFlash)


Scan drivers

ICA, SANE, TWAIN, WIA



Power


Power consumption (off)

0.11 W


Power consumption (typical)

3.6 W


Power consumption (standby)

2.2 W


Power supply type

USB



Packaging data


Package height

76 mm


Quantity per pack

1 pc(s)


Package depth
2 mm


Package width

377 mm


Package weight

1.11 kg
