Cambium Networks XE5-8X00A00-EU XE5-8 Indoor 5-Radio Wi-Fi XE5-8X00A00-EU

802.11ax Tri-Band 8x8/4x4 High-density Access Point

The XE5-8 is a ?ve-radio Wi-Fi 6/6E 8�8/4�4 access point (AP) designed to deliver high-density, future-proof performance for building next generation wireless networks. With ?ve user servicing radios, the XE5-8 delivers the highest density Wi-Fi 6 solution in the industry. Wi-Fi 6E support extends the capacity of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available.

Wi-Fi Built for the Future

With five high-speed software-defined radios, the XE5-8 enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) support when sufficient 6 GHz clients are available. The XE5-8 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high-speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management

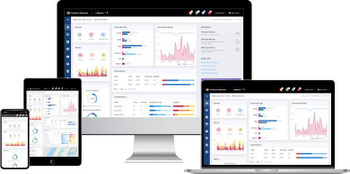

XE5-8 operates with either Cambium Networks� XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Limited Lifetime Warranty

The XE5-8 comes with a Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

Antenna



Antenna gain level (max)



5.82 dBi


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


LED indicators



Y, Yes


Placement



Ceiling, Wall


Product colour



White


Reset button



Yes


Features



2.4 GHz



Yes


5 GHz



Yes


Automatic channel selection



Yes


Band steering



Yes


Ethernet LAN data rates



10, 100, 1000, 2500, 5000


Fast roaming



Yes


Fit AP mode features



Hotspot 2.0


Frequency band



2.4 - 6 GHz


Maximal-Ratio Combining (MRC)



Yes


Maximum data transfer rate



9608 Mbit/s


Maximum data transfer rate (2.4 GHz)



574 Mbit/s


Maximum data transfer rate (5 GHz)



4804 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Modulation



16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, CCK, DSSS, QPSK


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.3bt


Number of WLAN connections (max)



2500


Quality of Service (QoS) support



Yes


Spread spectrum method



OFDM, OFDMA


VLAN support



Yes


Management features



Syslog



Yes


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.8 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


USB connector type



USB Type-A


Power



Power consumption (typical)



59 Watt


Product dimensions



Net Weight (Product, kg)



1.5 kg


Product Depth



30 cm


Product Height



5.8 cm


Product Width



30 cm


Protocols



DHCP server



Yes


Security



Number of SSID supported



16


Remote Authentication Dial-In User Service (RADIUS)



Yes


Security algorithms



EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WEP, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA3, WPA3-SAE


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


Cambium Networks


Warranty



5 Year(s)
