Chieftec

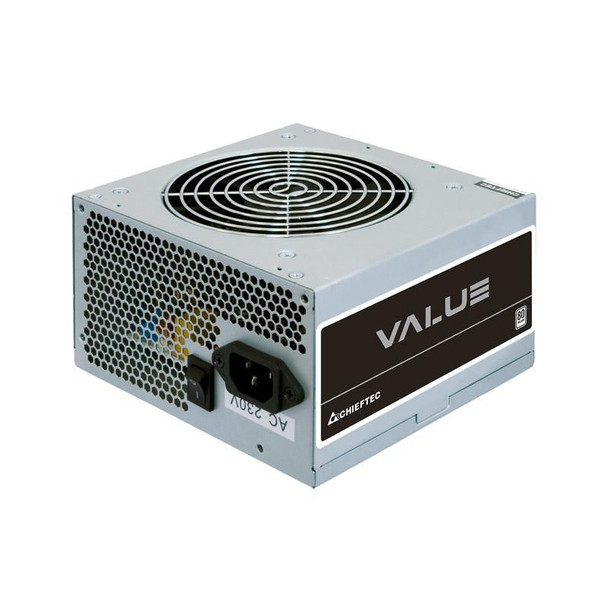

Chieftec APB-500B8 Power Supply Unit 500 W 20+4 APB-500B8
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- APB-500B8
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB T�V, EAC amongst many others, it�s the VALUE choice!
Design
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Silver
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
ATX version
2.3
Certification
CE, CB, T�V, EAC
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
EPS power connector (8-pin)
No
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 Hz
AC input voltage
230 V
Combined power (+3.3V)
130 Watt
Combined power (+5V)
130 Watt
Combined power (+5Vsb)
12.5 Watt
Combined power (-12V)
3.6 Watt
Efficiency
80 %
Input current
4 A
Max output current (+12V1)
24 A
Max output current (+12V2)
21 A
Max output current (+3.3V)
22 A
Max output current (+5V)
19 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overload, Short circuit, Under voltage
Total power
500 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
14 cm
Product Height
8.7 cm
Product Width
15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Chieftec
Warranty
1 Year(s)
