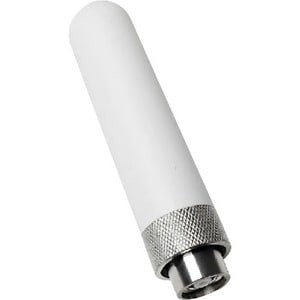

Cisco Aironet. Antenna Gain Level Max: 5 Dbi Frequency Band: 2.4/5 Ghz Antenna G AIR-ANT2535SDW-RS=

Cisco Aironet. Antenna gain level (max): 5 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 3 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Connector gender: Male. Quantity per pack: 1 pc(s) This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area. The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.
Interfaces/Ports

Connector TypeRP-TNC

Miscellaneous

Application/UsageWireless Access Point
Indoor
CompatibilityCisco Access Points:Aironet 1600
Aironet 2600
Aironet 3600
Aironet 3700
Catalyst 9120AXE


Technical Information

Antenna Gain23 dB
DirectivityOmni-directional
Voltage Standing Wave Ratio (VSWR)2.0:1
Operating Frequency Range2.4 GHz- 2.5 GHz
5.15 GHz - 5.925 GHz
Antenna Gain (Isotropic)5 dBi


Physical Characteristics

Weight (Approximate)48.2 g
Diameter31.8 mm
Height83.8 mm

General Information

Product TypeAntenna
Manufacturer Part NumberAIR-ANT2535SDW-RS=
Manufacturer Website Addresshttp://www.cisco.com
ManufacturerCisco Systems, Inc
Product NameAironet Short Dual-Band Omni Antenna
Product LineAironet
Brand NameCisco
