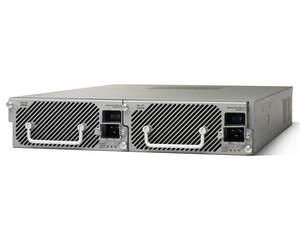

Cisco ASA5585-S20-K9-RFB ASA 5585-X CHASSIS WITH SSP20 ASA5585-S20-K9-RFB

Cisco� ASA 5500 Series Adaptive Security Appliances deliver a robust suite of highly integrated, market-leading security services for small and medium-sized businesses (SMBs), enterprises, service providers, and mission-critical data centers- in addition to providing unprecedented services flexibility, modular scalability, feature extensibility, and lower deployment and operations costs.

Cisco ASA 5585-X Adaptive Security Appliances are tailored to meet the high performance needs of mission-critical data centers and provide peace of mind with Cisco guaranteed coverage. Supporting the highest VPN session counts and twice as many connections per second as competitive firewalls in its class, Cisco ASA 5585-X appliances meet the growing needs of today's most dynamic organizations. The appliances combine the world's most proven firewall with the industry's most comprehensive, effective IPS, offering the most effective security solution in the industry to significantly decrease business risk and address regulatory compliance-all in a compact 2-rack-unit footprint.
There are four Cisco ASA 5585 models: the entry-level Cisco ASA 5585-X with Security Services Processor -10 (SSP-10) delivers 3 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-20 provides 7 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-40 delivers 12 Gbps of multi-protocol firewall performance; and the high-end Cisco ASA 5585-X with SSP-60 provides 20 Gbps of multi-protocol firewall performance.
All four ASA 5585-X models reliably deliver exceptional scalability to meet the demanding needs of mission-critical data centers. The Cisco ASA 5585-X appliances can support up to 10,000 concurrent VPN sessions, while delivering up to twice the connections per second and up to four times the session count of other firewalls at a similar throughput. The appliances also provide twice the efficacy and the most comprehensive threat coverage of any IPS.

Data transmission



Firewall throughput



10000 Mbit/s


Maximum data transfer rate



1000 Mbit/s


Maximum firewall connections per second



125000


Mobile VPN IPSec



10000


VPN throughput



2000 Mbit/s


Design



Form factor



2U


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



LED indicators



Y, Yes


Memory



Internal memory



12288 MB


Network



Number of VLANs



1024


Number of VPN connections



10000


Wi-Fi



No


Operational conditions



Non-operating altitude



0 - 9144 m


Operating altitude



0 - 3050 m


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



50 kg


Performance



Certification



47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR2 2 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, EN50082-1, EN55024, CISPR24, EN300386, KN 61000-4 Series


Concurrent connections



2000000


Heat dissipation



5450 BTU/h


Noise level



65 dB


Ports & interfaces



Connectivity technology



Wired


Gigabit Ethernet (copper) ports quantity



8


Serial ports quantity



1


SFP module slots quantity



2


USB 2.0 ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100-240 V


Input current



4.5 A


Number of power supply units



1


Peak power



370 Watt


Power supply



320 Watt


Redundant power supply (RPS) support



Yes


Product dimensions



Net Weight (Product, kg)



50.32 kg


Protocols



Supported network protocols



IPSec


Security



Content filtering



250


Security algorithms



3DES, AES


Storage



Flash memory



2048 MB


Storage media type



Flash


Vendor information



Brand Name


Cisco


Weight & dimensions



Dimensions (WxDxH)



483 x 673 x 88 mm
