Cisco

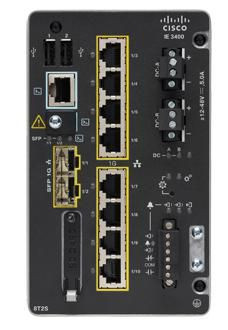

Cisco IE-3400-8T2S-E Catalyst Ie3400 Managed L2 IE-3400-8T2S-E
(No reviews yet)
Write a Review
- UPC:
- 0889728223379
- MPN:
- IE-3400-8T2S-E
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Advanced features support for digital transformation
Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.
Modular, versatile switch design
The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.
Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.
Fast speed, all Gigabit Ethernet
Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.
Open extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.
Extend intent-based networking to the IoT edge
With Cisco�s highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.
Data transmission
MAC address table
8000 entries
Number of queues
8
Design
DIN rail mounting
Yes
International Protection (IP) code
IP20
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
ARP inspection
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
System event log
Yes
Multicast features
Multicast support
Yes
Network
10G support
No
Broadcast storm control
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation
Yes
Networking standards
IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Number of VLANs
256
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Non-operating altitude
0 - 4572 m
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 70 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
2.21 kg
Performance
Flash memory
1500 MB
Internal memory
4000 MB
Mean time between failures (MTBF)
549808 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Compatible memory cards
SD
Console port
Mini USB-B/RS-232
Fiber optic connector
SFP
Fiber ports quantity
2
USB 2.0 ports quantity
3
Power
DC input voltage
9.6 - 60 V
Input current
6.3 A
Power consumption (typical)
36 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1.7 kg
Product Depth
13.46 cm
Product Height
9.14 cm
Product Width
15.24 cm
Security
Access Control List (ACL)
Yes
Access Control List (ACL) IPv4 entries
2000
Access Control List (ACL) IPv6 entries
512
Authentication
Guest VLAN
BPDU filtering/protection
Yes
DHCP features
DHCP snooping
IGMP entries
1000
IGMP snooping
Yes
MAC address filtering
Yes
Security algorithms
802.1x RADIUS, SNMPv3, SSH
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
