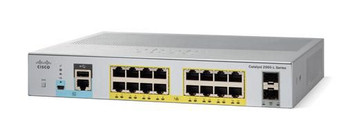

Cisco WS-C2960L-SM-16PS Catalyst 2960L-16Ps-Ll WS-C2960L-SM-16PS

The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS� Software features.

- Layer 2
- 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Power over Ethernet Plus (PoE+) support with up to 120W
- 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Switching capacity



36 Gbit/s


Design



Electromagnetic compatibility



47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A


Form factor



1U


LED indicators



Activity, Link, PoE, Speed, System


Product colour



Grey


Rack mounting



Yes


Safety



UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1


Logistics data



Harmonized System (HS) code



85176990


Management features



ARP inspection



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Multicast features



Multicast support



Yes


Network



Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Full duplex



Yes


Networking standards



IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Spanning tree protocol



Yes


Virtual LAN features



Private VLAN


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4500 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-5 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



2.74 kg


Performance



Built-in processor



Yes


Flash memory



256 MB


Internal memory



512 MB


Mean time between failures (MTBF)



313496 Hour


Processor frequency



800 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



110 - 240 V


Input current



0.28 A


Power consumption (typical)



27.1 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



16


Total Power over Ethernet (PoE) budget



120 Watt


Product dimensions



Net Weight (Product, kg)



2.11 kg


Product Depth



24 cm


Product Height



4.4 cm


Product Width



26.8 cm


Protocols



Management protocols



SNMPv3, Telnet, RMON


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Security algorithms



SNMP, SSH


SSH/SSL support



Yes


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
