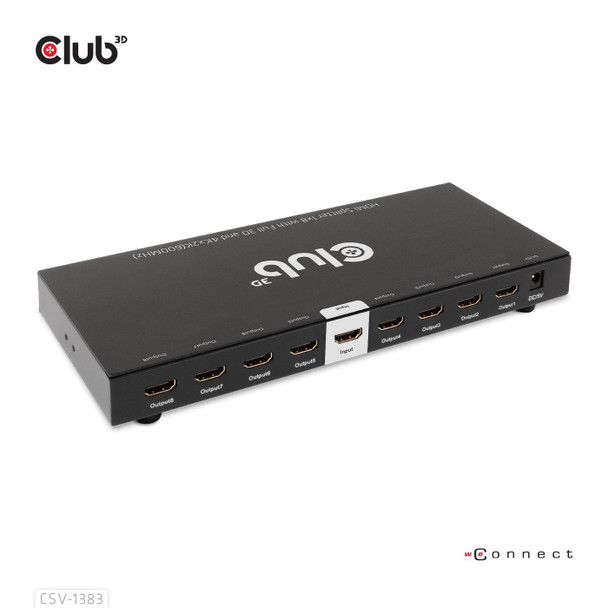

Club3D CSV-1383 1 To 8 HdmiT Splitter Full 3D CSV-1383

The Club 3D CSV-1383 is a high-performance and small-sized 1 to 8 HDMI� Ultra
High Definition Splitter with hot plug and iron casing. It distributes the input of
the HDMI� signal into eight identical outputs at the same time. It provides high
performance audio and video output through HDMI� cables up to 4K@60Hz
resolution and is capable of receiving and transmitting up to 6Gbps/600MHz
bandwidth.
This is a high-performance and small-sized HDMI� splitter in a metal housing with
an external Power Supply of 100-240VAC / 5V-3A DC, Power consumption(Max.)
11.3 Watt. It's an ideal assistant both at home and at work.
Features:� Easy to Use: Install in seconds, no need for settings
� One HDMI� Input, eight HDMI� outputs
� Support 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video
� Vertical Frequency Range 24-30-50-60Hz
� Resolution HDTV
Interlaced (50&60Hz) 480i,576i,1080i
Progressive (50&60Hz) Max. up to 4K@60Hz
� Support compressed audio
� Support HDCP 2.2
� Power Protection: the power will get disconnected automatically once the
voltage of the connected power adapter is above 5.5V (Note: the power
protection circuit will be damaged if the voltage if above 30V, so avoid
connecting power adapter with voltage above 30V)
� OS Support: Windows10/11

Features



3D



Yes


Easy to install



Yes


HD type



4K Ultra HD


HDCP



Yes


HDCP version



2.2


LED indicators



Power, Status


Maximum refresh rate



60 Hz


Maximum resolution



3840 x 2160 Pixels


Number of displays supported



8


Plug and Play



Yes


Product colour



Black


Windows operating systems supported



Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise


Network



Bluetooth



No


Ethernet LAN



No


Wi-Fi



No


Package dimensions



Depth (package,cm)



13 cm


Gross Weight (Package, kg)



0.52 kg


Height (package,cm)



5.5 cm


Width (package,cm)



35 cm


Packaging content



AC adapter included



Yes


Packaging data



Quantity per pack



1 pc(s)


Ports & interfaces



DC-in jack



Yes


Video out



8x HDMI


Video port type



HDMI


Video ports quantity



9


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



11.3 cm


Product Height



3.5 cm


Product Width



25.8 cm


Vendor information



Brand Name


Club3D


Warranty



1 Year(s)
