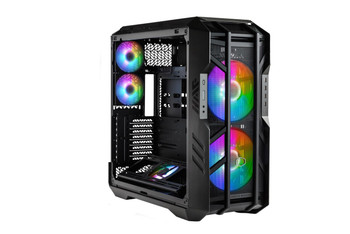

Cooler Master HAF 700 EVO Full Tower PC Grey ATX EATX micro ATX Mini-ITX SSI CEB H700E-IGNN-S00

THE HAF 700 EVO TRULY HAS NO LIMITS
Drawing inspiration from our ever-growing community of enthusiasts, the HAF 700 EVO is capable of housing up to EATX motherboards such as the Dominus Extreme, as well as any sized graphics cards in both horizontal and vertical orientations.

Users can enjoy direct side intake and support for power supplies of up to 200mm, and well as unparalleled number of options for installing disks, pumps and radiators.

MAMMOTH RADIATOR SUPPORT
HAF 700 EVO provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 480mm (side panel), 360mm (front panel, bottom panel, or up to dual radiators on the top panel), or 240mm (rear panel).

ROTATABLE RADIATOR BRACKET
HAF 700 EVO boasts two rotatable fan/radiator brackets. These brackets are fully modular and can be installed in multiple positions for complex setups. Users may choose one of the two to rotate, showcasing their radiator at unique angles.

THE "HAF STANDARD" IN COOLING
From the revamped FineMesh V2 to the exclusive Performance Edition 200mm SickleFlow fans, HAF 700 Evo surely packs a punch. HAF 700 Evo surely also provides unparalleled options for users looking to water-cool their systems with custom solutions.

A DECADE OF HAF DESIGN, REVOLUTIONIZED
The HAF 700 Evo is almost entirely tool-less and you can install almost any component without the need for screwdrivers , including:- GPUs
- Vertical GPU Holder Kit
- Power Supply
- 3.5? Drives
- 2.5? Drives
- HDD cage
- Pumps and Reservoirs
- Internal & External Paneling

IRIS: BUILT IN REAL-STATS MONITOR
Monitor system stats in real time or showcase your personality on Iris, your built-in LCD assistant. Immerse yourself in full range customization of Iris's display and ARGB Gen2 elements via MasterPlus+, and bring to life vastly diverse setups, unique in aesthetics and function.

Design


Maximum PSU length

20 cm


Number of 3?5" bays

12


Type

PC


Supported motherboard form factors

ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB


Number of 2?5" bays

12


Product colour

Grey


Material

Mesh, Plastic, Steel, Tempered glass


Maximum CPU cooler height

16.6 cm


Maximum graphics card length

49 cm


Number of expansion slots

8


Form factor

Full Tower


Anti-dust filter

Yes



Cooling


Side fans diameters supported

120,140 mm


Number of side fans supported (max)

4


Bottom fans diameters supported

120,140 mm


Front fans diameters supported

120,140,200 mm


Rear radiator sizes supported

240 mm


Rear fans installed

2x 120 mm


Number of rear fans supported (max)

2


Side radiator sizes supported

420,480 mm


Rear fans diameters supported

120 mm


Front radiator sizes supported

360,420 mm


Number of bottom fans supported (max)

3


Top radiator sizes supported

360,420 mm


Front fans installed

2x 200 mm


Bottom fans installed

1x 120 mm


Number of front fans supported (max)

3


Number of top fans supported (max)

6


Top fans diameters supported

120,140,200 mm



Storage


HDD/SSD combo cage

Yes


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

540 mm


Width

279 mm


Depth

556 mm


Weight

24.3 kg



Logistics data


Harmonized System (HS) code

84733080



Power supply


Supported power supply form factors

ATX


Power supply included

No


Power supply location

Bottom



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

4


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Audio input

Yes


Audio output

Yes



Packaging data


Package height

725 mm


Package depth

780 mm


Accessories included

Universal Graphics Card Holder Kit V2


Package width

399 mm


Package weight

29 kg


LED controller

Yes
