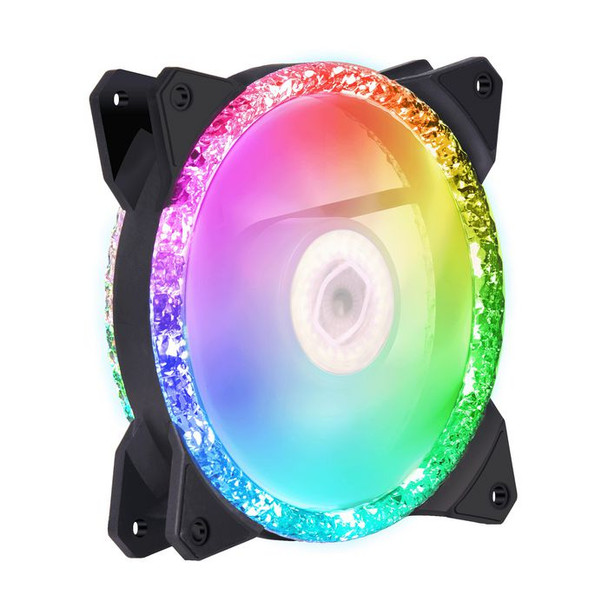

Cooler Master MFY-B2DN-203PA-R1 Masterfan Mf120 Prismatic 3 MFY-B2DN-203PA-R1

Radiant Crystalline Lighting
Cooler Master is introducing a brand new product to the MasterFan family - MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.

The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

Tri-loop Addressable GEN 2 RGB
24 Addressable Gen 2 RGB LEDs are uniformly arranged around the crystalized loop design with an additional 6 Addressable LEDs on the fan hub.

Radiant Crystalline Lighting Effect
Unique crystallized loop design on both sides of the fan provide maximum light dispersion of the addressable RGB.

Silent Driver Ic And Cooling Technology
Silent Driver IC with noise reduction technology offers smooth rotation reduced vibration and fan noise delivering quiet performance even at the highest loads.

Highly Optimized P/Q Performance For All Applications
The MF120 Prismatic features redesigned fan blades producing a pressure to airflow (P/Q) curve that exceeds previous generation performance.

Addressable GEN 2 RGB Controller
Included Addressable Gen 2 RGB Controller works with Cooler Master's MasterPlus+ software customizing each individual LED on color, effect, brightness and more - all from an intuitive, convenient interface.

Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection

Crystal Clear Performance
Cooler Master is introducing a brand new product to the MasterFan family - MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

Small Simple Versatile
Granting you the versatility to easily personalize your devices delivered to you in a small compact size.

Design



Fan connector



4-pin


Illumination colour



Blue, Green, Red


Illumination LED



Yes


Number of LEDs



24


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case height



30.3 cm


Master (outer) case length



46.5 cm


Master (outer) case width



36.3 cm


Products per master (outer) case



20 pc(s)


Other features



Mean time to failure (MTTF)



160000 Hour


Package dimensions



Depth (package,cm)



13.3 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



19.8 cm


Width (package,cm)



8.8 cm


Packaging content



LED controller



Yes


LED controller interface



3-pin


Performance



Bearing type



Rifle bearing


Fan diameter



12 cm


Maximum air pressure



2.91 mmH2O


Maximum airflow



55 cfm


Noise level (high speed)



27 dB


Noise level (low speed)



8 dB


Pulse-width modulation (PWM) support



Yes


Quantity per pack



3 pc(s)


Rotational speed (max)



2000 RPM


Rotational speed (min)



650 RPM


Suitable location



Computer case


Type



Fan


Power



LED voltage



5 V


Power consumption (typical)



1.44 Watt


Rated current



0.12 A


Rated voltage



12 V


Safety current



0.37 Ah


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Fan weight



153 g
