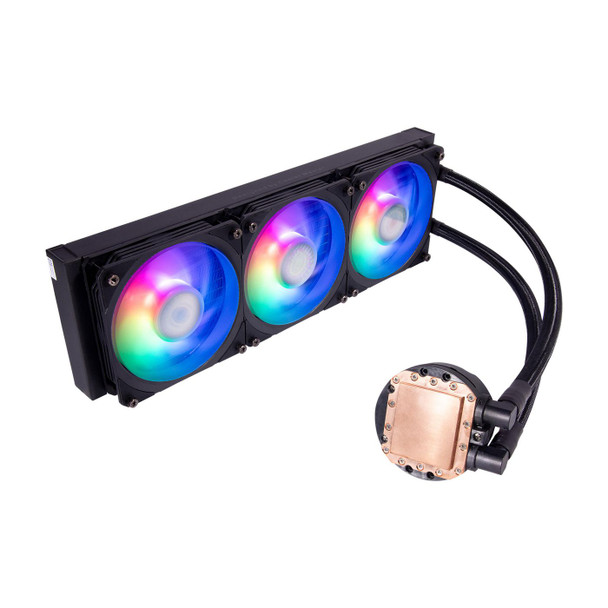

Cooler Master MLY-D36M-A23PZ-R1 Masterliquid Pl360 Flux MLY-D36M-A23PZ-R1

Cooling Uncompromised
Cooler Master’s Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.

Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.

Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.

Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.

Design



Fan connector



4-pin


Illumination colour



Multi


Illumination LED



Yes


Number of fans



3 fan(s)


Product colour



Black


Radiator material



Aluminum


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case height



26.5 cm


Master (outer) case length



57 cm


Master (outer) case width



45.5 cm


Products per master (outer) case



4 pc(s)


Package dimensions



Depth (package,cm)



43.7 cm


Gross Weight (Package, kg)



3.64 kg


Height (package,cm)



14.4 cm


Width (package,cm)



23.2 cm


Performance



Fan diameter



12 cm


Fan noise level (max)



32 dB


Fan's mean time to failure (MTTF)



160000 Hour


Maximum air pressure



2.96 mmH2O


Maximum airflow



72.37 cfm


Pulse-width modulation (PWM) support



Yes


Pump connector



4-pin


Pump noise level



15 dB


Pump's mean time to failure (MTTF)



210000 Hour


Rotational speed (max)



2300 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4


Type



Liquid cooling kit


Power



Fan current



0.15 A


Fan voltage



12 V


Pump power consumption



6 Watt


Pump voltage



12 V


Safety current



0.3 Ah


Product dimensions



Net Weight (Product, kg)



2.8 kg


Vendor information



Brand Name


Cooler Master


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Pump depth



8.9 cm


Pump height



4 cm


Pump width



7.5 cm


Radiator depth



39.4 cm


Radiator height



2.72 cm


Radiator width



11.96 cm
