Cooler Master

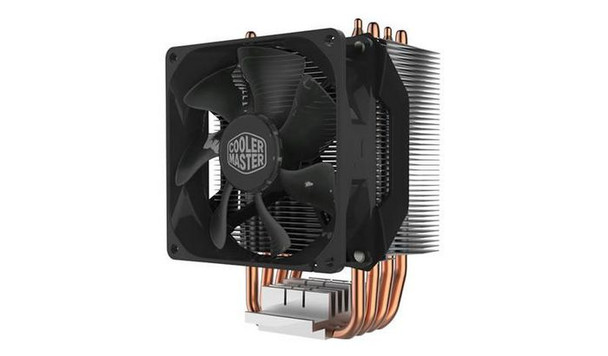

Cooler Master RR-H412-20PK-R2 Hyper H412R Processor 9.2 Cm RR-H412-20PK-R2
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- RR-H412-20PK-R2
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
COMPACT and COMPELLING
HYPER H412R
The Hyper H412R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper TX3 series. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.
Performance in Compact Size
With height of 136.5mm, the Hyper H412R is a compact tower cooler, designed to fit in tight builds. With its outstanding performance in its class, it is a great solution for Micro ATX and Mini ITX boards.
4 Direct Contact Heatpipes
Just like the Hyper 212, it includes 4 Direct Contact heatpipes constructed out of copper to accerates the heat conduction through the entire heatpipe. This allows heat to be dissipated quickly and efficiently throught the funnel shaped aluminum fins.
Perfecting the Heatsink Design
Cooler Master's years of aluminum fin craftmanship is second to none. Optimized fin stacked distance between each layer is based on stringent airflow tests from our labs. As a result, even with a compact-size each heatsink with the 92mm fan is able to maintain performance in a compact build.
Easy Installation
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Design
Fan connector
4-pin
Fins material
Aluminium
Number of fan blades
7
Number of fans
1 fan(s)
Number of heat pipes
4
Product colour
Black
Logistics data
Harmonized System (HS) code
84733080
Other features
Heatsink dimensions (W x D x H)
63.5 x 90 x 136 mm
Mean time to failure (MTTF)
40000 Hour
Output voltage
12 V
Package dimensions
Depth (package,cm)
41.3 cm
Gross Weight (Package, kg)
0.87 kg
Height (package,cm)
5 cm
Width (package,cm)
38 cm
Performance
Fan diameter
9.2 cm
Maximum air pressure
1.79 mmH2O
Maximum airflow
34.1 cfm
Noise level (high speed)
29.4 dB
Pulse-width modulation (PWM) support
Yes
Rotational speed (max)
2000 RPM
Rotational speed (min)
600 RPM
Suitable location
Processor
Supported processor sockets
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Type
Cooler
Power
Power consumption (typical)
2.4 Watt
Rated current
0.2 A
Safety current
0.4 Ah
Product dimensions
Net Weight (Product, kg)
0.67 kg
Product Depth
10.2 cm
Product Height
13.6 cm
Product Width
8.34 cm
Vendor information
Brand Name
Cooler Master
Warranty
1 Year(s)
Weight & dimensions
Fan dimensions (W x D x H)
92 x 92 x 25 mm
Heat pipes diameter
6 mm
Heatsink weight
358 g
