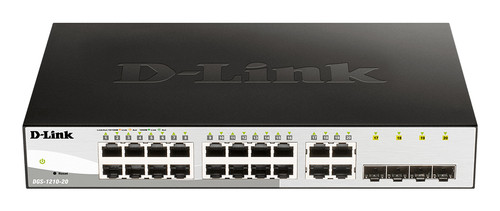

D-Link 20-Port Gigabit Smart Managed Switch Including 4 Sfp Ports. Switch Type: DGS-1210-20

D-Link 20-Port Gigabit Smart Managed Switch including 4 SFP ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U Smart Managed with a Plus With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link---s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network. Advanced Layer 2 Management with Layer 3 Static Routing The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files. With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments. Fibre Uplinks Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that---s immune to interference and which has access to higher throughput to protect the future demands of your business network. PoE and PoE+, with budgets up to 370W The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras. This product is compatible with Nuclias Connect Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution. Free Network Design and Management Software D-Link---s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis. Smart Energy-Saving Design D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch. Surveillance Mode Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Network & Communication

Layer Supported2

Management & Protocols

ManagementWeb-Based Management
Command Line Interface
SNMP v1, v2, v3
RMON 1, 2, 3, 9
Telnet
VLAN
QoS
MIB

ManageableYes

Miscellaneous

Package ContentsDGS-1210-20 Ethernet Switch
1 x AC Power Cord
4 x Rubber Feet
Screws
2 x Mounting Brackets
1 x Multi-Lingual Getting Started Guide
1 x CD with User Manual, SmartConsole Utility program, and D-View Module

Certifications & StandardsIEEE 802.1p
IEEE 802.1Q
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3X
IEEE 802.1D
IEEE 802.1w
IEEE 802.3ad
FCC class A
CE Class A
VCCI Class A
IC Class A
cUL
LVD
CE


Physical Characteristics

Form FactorDesktop
Rack-mountable

I/O Expansions

Number of SFP Slots4
Shared SFP SlotYes
Total Number of Expansion Slots4.0

Interfaces/Ports

Token Ring PortNo
LRE PortNo
USBNo
Number of Network (RJ-45) Ports20
ModularNo
Management PortNo
Uplink PortNo
Stack PortNo
BypassNo
Total Number of Network Ports20
Port/Expansion Slot Details20 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot


Power Description

Power SourcePower Supply
PoE (RJ-45) PortNo
Redundant Power Supply SupportedNo

Media & Performance

Network Technology10/100/1000Base-T 00Base-X
Twisted Pair Cable StandardCategory 5
Ethernet TechnologyGigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair

General Information

Product TypeEthernet Switch
Manufacturer Part NumberDGS-1210-20
Manufacturer Website Addresshttp://www.dlink.co.uk
ManufacturerD-Link Systems, Inc
Product ModelDGS-1210-20
Product NameDGS-1210-20 Ethernet Switch
Product SeriesDGS-1210
Brand NameD-Link
