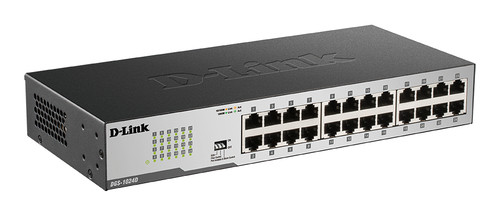

D-Link 24-Port Gigabit Unmanaged Desktop Switch. Switch Type: Unmanaged. Basic S DGS-1024D/B

D-Link 24-Port Gigabit Unmanaged Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries. Rack mounting --- 48Gbps switching capacity --- 8K MAC Address Table --- Rack mountable or Desktop Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000Mbps Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space. Power-Packed It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. Easy to Install and Maintain The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.
Network & Communication

Layer Supported2

Interfaces/Ports

Number of Network (RJ-45) Ports24
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet Network

Power Description

Power SourcePower Supply
Frequency60 Hz
Power Consumption37.50 W

General Information

Product TypeEthernet Switch
Manufacturer Part NumberDGS-1024D/B
Manufacturer Website Addresshttp://www.dlink.co.uk
ManufacturerD-Link Systems, Inc
Product ModelDGS-1024D
Product NameDGS-1024D 24-Port Copper Gigabit Switch
Brand NameD-Link


Miscellaneous

Additional InformationAccess Method: CSMA/CD
Topology: Star
MAC Address Learning: Automatic update

Certifications & StandardsIEEE 802.3: 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u: 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3: NWay auto-negotiation
IEEE 802.3x: Flow Control
EIA/TIA-568

Emission (EMI):FCC Class A
CE Class A
VCCI Class A

Safety:CSA International

For Country/RegionUnited Kingdom
Ireland

Physical Characteristics

Weight (Approximate)1.81 kg
Height43.9 mm
Width279.9 mm
Depth179.8 mm

Media & Performance

Network Technology10/100/1000Base-T Base-T
Twisted Pair Cable StandardCategory 5e
Ethernet TechnologyGigabit Ethernet
Media Type SupportedTwisted Pair
