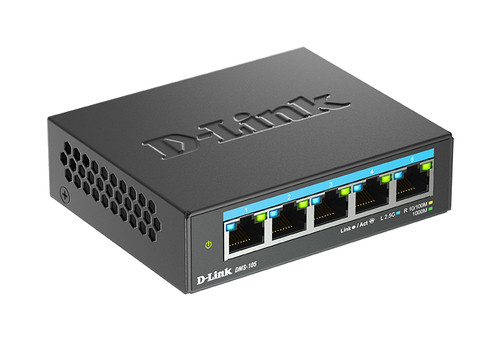

D-Link 5-Port Multi-Gigabit Unmanaged Switch. Switch Type: Unmanaged. Basic Swit DMS-105/B

D-Link 5-Port Multi-Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3az. Rack mounting The 5-Port 2.5G Multi-Gigabit Desktop Switch with five 2.5 Gigabit ports provide a quick and easy way to upgrade your network to eliminate bottlenecks to maximise performance and throughput. Multi-Gigabit Networking The five 2.5 Gigabit ports provide high-speed, reliable wired connections to network-attached storage (NAS) devices, Wi-Fi 6 router/access points, gaming computers, and workstations. Ideal for demanding business or home network setups, it allows users to access network resources and transfer large multimedia files at lightning speeds. Multicast Support IGMP Snooping can reduce unnecessary multicast traffic, improve network performance, and prevent bandwidth congestion. This ultimately results in a better viewing experience for IPTV users and a more efficient use of network resources. Green Technology The 5-Port 2.5G Multi-Gigabit Desktop Switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE) and link status detection. Energy-Efficient Ethernet reduces power consumption of the switch when network utilisation is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Traffic Management The 5-Port 2.5G Multi-Gigabit Desktop Switch includes traffic management features, such as IEEE 802.1p Quality of Service (QoS) and IEEE 802.3x Flow Control. The 802.1p QoS feature allows traffic to be classified in 8 priority levels, allowing different types of traffic to be prioritised, depending on their importance.
Management & Protocols

ManageableNo

Technical Information

FeaturesFanless

Interfaces/Ports

Total Number of Network Ports5
Port/Expansion Slot Details5 x 2.5 Gigabit Ethernet Network Port

Miscellaneous

Application/UsageNetwork
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Power Description

Input Voltage12 V
Power SourcePower Adapter
Power Consumption4.92 W

Network & Communication

Layer Supported2
Networking StandardsIEEE 802.3ab
IEEE 802.3az
IEEE 802.3bz
IEEE 802.3x
IEEE 802.3
IEEE 802.3u
IEEE 802.1p


Media & Performance

Network Technology10/100/1000Base-T
2.5GBase-T
Ethernet Technology2.5 Gigabit Ethernet
Gigabit Ethernet
Media Type SupportedTwisted Pair

Physical Characteristics

Weight (Approximate)238.6 g
Height28 mm
Width82 mm
Depth100.5 mm
Product MaterialMetal

General Information

Product TypeEthernet Switch
Manufacturer Part NumberDMS105B
Manufacturer Website Addresshttp://www.dlink.co.uk
ManufacturerD-Link Systems, Inc
Product ModelDMS-105/B
Product Name5-Port Multi-Gigabit Unmanaged Switch
Brand NameD-Link
