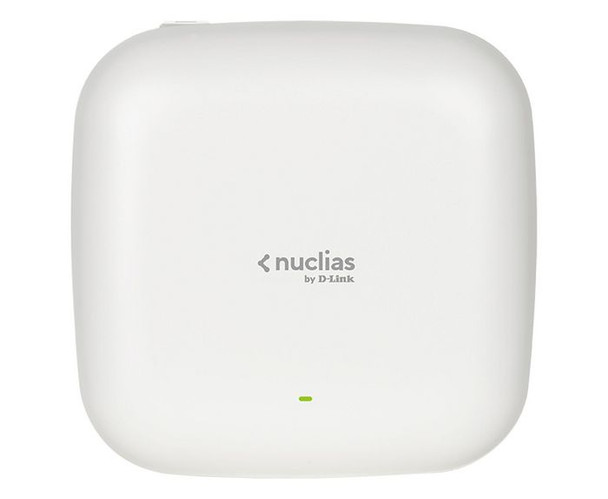

D-Link DBA-X1230P Nuclias AX1800 Wi-Fi DBA-X1230P

Nuclias AX1800 Wi-Fi Cloud-Managed Access Point(With 1 Year License)
- 11ax 2x2+2x2 ceiling access point
- MU-MIMO slices through congestion, reducing wait time for all users 2x2 dual-band antenna
- 1 x GE LAN port
- Support PoE 802.3at PD
- Centralized management and reporting via Nuclias Cloud(portal and App)
- With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup
- Stay secure with the latest WPAOver-the-air firmware upgrade
- Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible
- Plenum-rated
- WPA2/WPA3 Personal/Enterprise

Antenna



Antenna direction type



Omni-directional


Antenna gain level (max)



4 dBi


Antenna type



Internal


Antennas quantity



4


Design



LED indicators



Power


Placement



Ceiling, Wall


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


Maximum data transfer rate (2.4 GHz)



575 Mbit/s


Maximum data transfer rate (5 GHz)



1200 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Transmitting power (CE)



23 dBm


Transmitting power (FCC)



22 dBm


Management features



Firmware upgradeable



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 65 °C


Package dimensions



Depth (package,cm)



24.5 cm


Gross Weight (Package, kg)



1.02 kg


Height (package,cm)



9.2 cm


Width (package,cm)



24.7 cm


Packaging data



Mounting kit



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



AC input voltage



12 V


Input current



1.5 A


Input voltage



12 V


Power consumption (typical)



14 Watt


Power over Ethernet (PoE)



Yes


Power supply



16 Watt


Product dimensions



Net Weight (Product, kg)



0.92 kg


Product Depth



4.22 cm


Product Height



17 cm


Product Width



17 cm


Security



MAC address filtering



Yes


Number of SSID supported



16


Remote Authentication Dial-In User Service (RADIUS)



Yes


Security algorithms



SSID, WPA2, WPA3-Enterprise


Technical details



Harmonized System (HS) code



85176990


Sustainability certificates



CE


Vendor information



Brand Name


D-Link


Warranty



5 Year(s)
