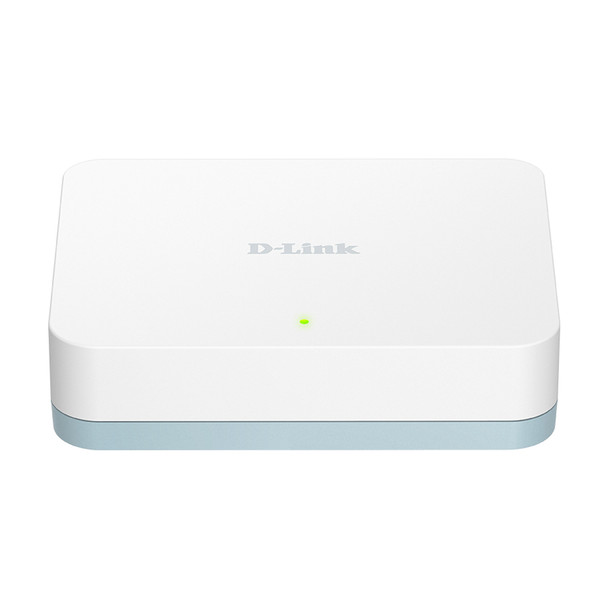

D-Link DGS-1005D/B 5-Port Green Ethernet Gigabit Desktop Switch DGS-1005D/B

The DGS-1005D 5-Port Gigabit Desktop Switch is part of D-Link's series of SOHO devices that allows you to easily expand and upgrade your network. D-Link's Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1005D provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (EnergyStar Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1005D 5-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It's stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 5-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Features


Connectivity


Five Gigabit Ethernet LAN ports for high-speed wired connections


Cable Diagnostics Function notifies users of cable conditions through product LEDs Green Ethernet


Features


Reduces power to a port when no link is detected


Adjust power to a port by detecting the length of the connected Ethernet cable



Protocols


Data link protocols

Ethernet, Fast Ethernet, Gigabit Ethernet



Data transmission


Packet buffer memory

0.112 MB


Maximum data transfer rate

1 Gbit/s


MAC address table

8000 entries


Jumbo frames support

Yes


Switching capacity
Gbit/s



Other features


Data transfer rate
00 Mbit/s


Electromagnetic emissions

CE Mark, FCC Class B


I/O ports

5x 10/100/1000BASE-T


Connectivity technology

Wired


Dimensions (WxDxH)
2 x 107 x 30 mm



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

5



Security


Access Control List (ACL)

No



Management features


Web-based management

No


Switch layer

L2


Quality of Service (QoS) support

Yes


Cloud-managed

No


Switch type

Unmanaged



Design


Stackable

No


Product colour

White


Rack mounting

No


Housing material

Plastic


Safety

CSA


LED indicators

Power



Weight & dimensions


Weight

80 g



Packaging content


Batteries included

No



Logistics data


Harmonized System (HS) code

85176990



Technical details


Pallet height (sea)

2.02 m


Products per pallet (air)
00 pc(s)


Pallet gross weight (sea)

411.6 kg


Products per shipping (inner) case
pc(s)


Master (outer) cases per pallet (sea)

80 pc(s)


Pallet height (air)

2.02 m


Pallet gross length
0 cm


Products per pallet (sea)
00 pc(s)


Shipping (inner) case length

43.2 cm


Master (outer) cases per pallet (air)

80 pc(s)


Pallet gross weight (air)

411.6 kg


Shipping (inner) case width

25.3 cm


Shipping (inner) case height

23.5 cm


Pallet gross width
0 cm


Shipping (inner) case gross weight

4.91 kg


Shipping (inner) case net weight

3.28 kg



Network


Networking standards

IEEE 802.3


Copper ethernet cabling technology
00BASE-T, 100BASE-TX, 10BASE-T

G support

No


Full duplex

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

-10 - 70 -C



Power


Power consumption (typical)

4.5 W


Power supply included

Yes


Power source

AC



Packaging data


Package height

82 mm


Package depth
6 mm


Package width
0 mm


Package weight

222 g
