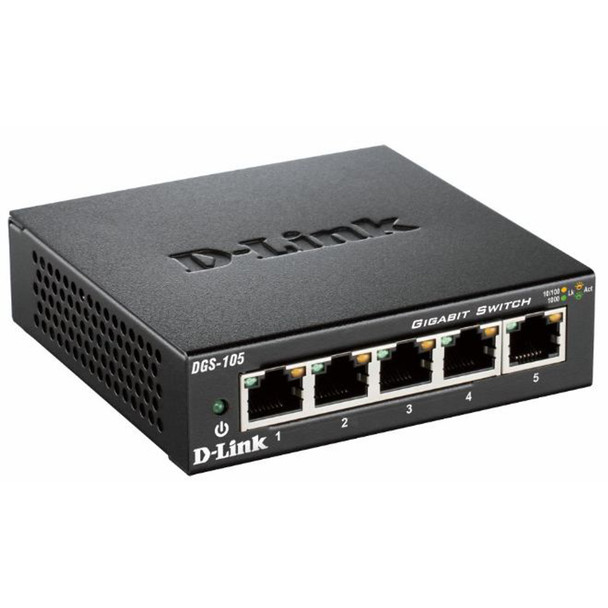

D-Link DGS-105 Unmanaged Full duplex DGS-105/B

- Plug and Play operation
- 5 Gigabit Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- Cable diagnostics function to detect faulty network cables
- D-Link Green technology, saves energy and increases the product's lifespan

D-Link's DGS-105 Gigabit Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DGS-105 completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DGS-105 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-105 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DGS-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Cable diagnostics function

The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.

Power-saving technology

The DGS-105 is part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet technology in the DGS-105 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Data transmission


Packet buffer memory

0.128 MB


Maximum data transfer rate

1 Gbit/s


MAC address table
00 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Supported data transfer rates
/100/1000 Mbps


Switching capacity
Gbit/s



Other features


Data transfer rate
00 Mbit/s


Connectivity technology

Wired


Dimensions (WxDxH)
0 x 98 x 28 mm



Certificates


Certification

FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

5


Power connector

DC-in jack



Security


MAC address filtering

Yes



Management features


Quality of Service (QoS) support

Yes


Switch type

Unmanaged



Design


Product colour

Black


Rack mounting

No


Housing material

Metal



Weight & dimensions


Weight

286 g



Logistics data


Harmonized System (HS) code

85176990



Technical details


Pallet height (sea)

2.04 m


Products per pallet (air)

750 pc(s)


Pallet gross weight (sea)

452.5 kg


Products per shipping (inner) case
pc(s)


Master (outer) cases per pallet (sea)

75 pc(s)


Pallet height (air)

2.04 m


Pallet gross length
0 cm


Products per pallet (sea)

750 pc(s)


Shipping (inner) case length

33.5 cm


Master (outer) cases per pallet (air)

75 pc(s)


Pallet gross weight (air)

452.5 kg


Shipping (inner) case width

23 cm


Shipping (inner) case height

36.6 cm


Pallet gross width
0 cm


Shipping (inner) case gross weight

5.7 kg


Shipping (inner) case net weight

5 kg



Network


Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Copper ethernet cabling technology
00BASE-T, 100BASE-TX, 10BASE-T

G support

Yes


Full duplex

Yes


Auto MDI/MDI-X

Yes



Operational conditions


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Operating temperature (T-T)

0 - 50 C


Storage temperature (T-T)

-10 - 70 C



Performance


Mean time between failures (MTBF)
88338 h



Power


Input voltage

5 V


Power consumption (typical)

2.1 W


Input current

1 A



Packaging data


Package height

62 mm


Package depth

220 mm


Package width
0 mm


Package weight

500 g
