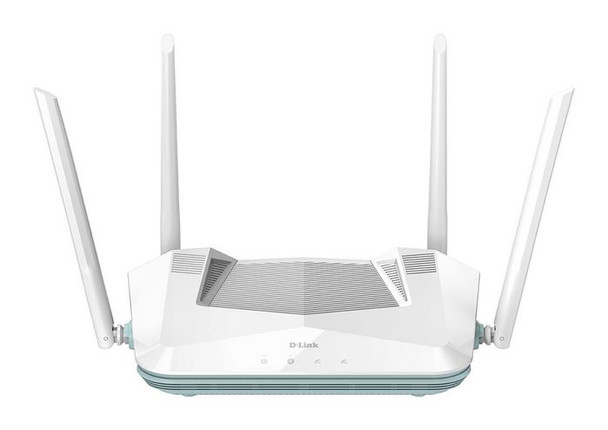

D-Link R32/E EAGLE PRO AI AX3200 Smart R32/E_OLD

EAGLE PRO AI AX3200 Smart Router
-Next-generation Wi-Fi 6 with AX3200 speeds of up to 800 Mbps (2.4 GHz) , 2402 Mbps (5 GHz)
-Gigabit Ports, Plug in smart TVs, game consoles, and other devices for a fast and reliable connection
-Mesh Smart Roaming, Create whole-home mesh Wi-Fi with one network name and automatically connect as you move through your home
-The EAGLE PRO AI engine automatically keeps you on the optimal channel
-Mesh nodes collaborate with each other to optimize network traffic
-THE EAGLE PRO AI app provides notifications and usage reports to help you manage your network more efficiently
-Enhanced Parental Controls which allows to create profiles, ser schedules, establish bedtime, block specific web domains, and pause the internet.
-THE EAGLE PRO AI series can scale to any size home for dead zones free Wi-Fi coverage
-Compliant with the latest security standards like WPA3 and IEX 62443-4-1 for clean Network
-Works with Amazon Alexa and Google Assistant for convenient voice control

Antenna



Antenna design



External


Antennas quantity



4


Design



LED indicators



LAN, Power, WLAN


On/off switch



Yes


Product colour



White


Product type



Desktop/pole router


Features



Number of concurrent sessions (max)



30000


Works with Amazon Alexa



Yes


Works with the Google Assistant



Yes


Management features



MU-MIMO technology



Yes


Quality of Service (QoS) support



Yes


Reset button



Yes


Web-based management



Yes


WPS push button



Yes


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Ethernet LAN interface type



Gigabit Ethernet


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 65 �C


Package dimensions



Depth (package,cm)



26.900000000000002 cm


Gross Weight (Package, kg)



0.52 kg


Height (package,cm)



6.7 cm


Width (package,cm)



27 cm


Packaging content



AC adapter included



Yes


Cables included



LAN (RJ-45)


Quick installation guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


USB port



No


Power



Output current



2 A


Output voltage



12 V


Power consumption (typical)



15.18 Watt


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.432 kg


Product Depth



15.9 cm


Product Height



6.19 cm


Product Width



22.83 cm


Security



DMZ support



Yes


DoS attack prevention



Yes


Filtering



Yes


IP address filtering



Yes


MAC address filtering



Yes


Security algorithms



WPA, WPA2, WPA3


Stateful Packet Inspection (SPI)



Yes


Sustainability



Sustainability certificates



CE


Sustainability compliance



Yes


System requirements



Mobile operating systems supported



Android, iOS


Vendor information



Brand Name


D-Link


Warranty



2 Month(s)


WAN connection



3G/4G USB modem compatibility



No


DSL WAN



No


Ethernet WAN



Yes


SIM card slot



No


WAN connection type



RJ-45


Wireless LAN features



Modulation



1024-QAM


Top Wi-Fi standard



Wi-Fi 6 (802.11ax)


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)


WLAN data transfer rate (max)



2402 Mbit/s
