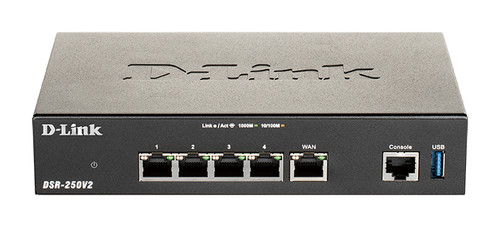

D-Link Unified Services Vpn Router. Networking Standards: Ieee 802.1Q Ethernet I DSR-250V2/B

D-Link Unified Services VPN Router. Networking standards: IEEE 802.1Q, Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Routing protocols: OSPF, OSPFv3, RIP-1, RIP-2, Supported network protocols: IPv6, SNMP v1, v2c, v3. Security algorithms: 3DES, AES, DES, Authentication method: Internal User Database, Radius, POP3, LDAP, AD, NT Domain. Mean time between failures (MTBF): 1239157.85 h, Safety: LVD (EN62368), Ce Secure and private connection to the office, wherever you are. Secure, high-performance networking solutions to address the changing needs of small and medium businesses. Full-featured VPN offers a private link between mobile/remote workers and the office. Advanced VPN Integrated VPN client and server with support for IPSec, PPTP, L2TP, GRE, and OpenVPN tunneling 3G/4G LTE network Mobile connectivity lets you create an internet-enabled network, without the need for a fixed-line connection. Failover/Load Balancing Mode Dual Gigabit WAN and optional 3G/4G support provide high availability and traffic load balancing. Captive Portal Captive Portal allows employees and guest users to authenticate and authorise easily Remote secure connections With fully featured VPN (IPSec/PPTP/L2TP/GRE/OpenVPN), the DSR-250V2 provides secure connections between mobile or remote employees and the office. Highly configurable and flexible with OpenVPN OpenVPN uses various authentication and encryption protocols, such as SSL and TLS ensure usersÔÇÖ communications are secure and private. Not only is it highly secure, it is also incredibly configurable to provide secure point-to-point or site-to-site connections. High-performance firewall and VPN High-performance firewall with up to 950 Mbps throughput, and VPN (3DES) with up to 200 Mbps throughput, supporting up to 75 VPN tunnels, allows more devices to be connected, faster. Multi-WAN support Multi-WAN support (through dual Gigabit WAN ports and option 3G/4G dongle) with WAN failover and load balancing ensures a reliable and stable Internet connection. Access through browser authentication Captive Portal allows employees and guests to be easily authenticated and authorised through customisable welcome page. Web Content Filtering The DSR-250V2 also provides a web content filtering feature to help administrators monitor, manage and control employeesÔÇÖ Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies or to block URLs by keyword. Dynamic web content filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximise service availability. Control access and bandwidth priority based on application Application Control can restrict or give priority to predefined applications to e´¼Çectively manage network utilisation.
Management features

Web-based managementYes

Packaging content

AC adapter includedYes

Design

Product colourBlack
On/off switchYes

Features

CertificationFCC Class B, CE Class B, RCM, IC, VCCI
Mean time between failures (MTBF)1239157.85 h
SafetyLVD (EN62368)

Operational conditions

Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 70 ??C
Operating temperature (T-T)0 - 40 ??C

Weight & dimensions

Height38 mm
Width120 mm
Depth190 mm

Power

Power consumption (typical)14.4 W
Output voltage12 V
Output current1.5 A
Power source typeDC

Protocols

Supported network protocolsIPv6, SNMP v1, v2c, v3
Routing protocolsOSPF, OSPFv3, RIP-1, RIP-2
DHCP clientYes
DHCP serverYes


Ports & interfaces

Ethernet LAN (RJ-45) ports4
DC-in jackYes
USB version3.2 Gen 1 (3.1 Gen 1)
USB ports quantity1
Number of console ports1

Security

Security algorithms3DES, AES, DES
VPN tunnels quantity75
Network address translation (NAT)Yes
FirewallYes
URL filteringYes

WAN connection

DSL WANNo
Ethernet WANYes
SIM card slotNo
3G/4G USB modem compatibilityNo
SFP WANNo

Network

Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.1Q
Concurrent connections50000
VLAN supportYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Static routeYes
