Datalogic
Datalogic DSE0420 DSE0420 2D Decode scan module DSE0420
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- DSE0420
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

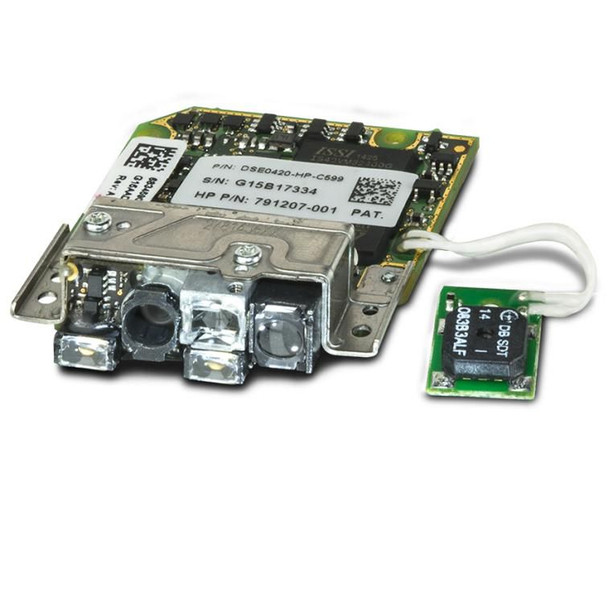

DSE0420 Scan Module

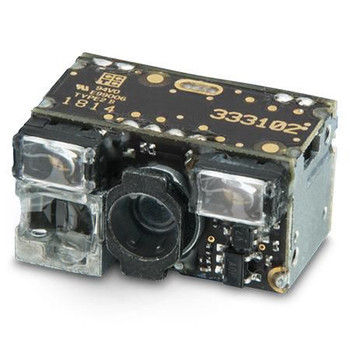

Decoded version of the DE2011-DL ultra-compact high performance 2D imager engine with capture at 60 fps
Overview
The DSE0420 is the decoded version of the DE2011-DL ultra-compact high performance 2D imager engine. The scan engine features an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance. The DSE0420 scan module includes Datalogic�s snappy, high-performance decoder which can read all common 1D and 2D bar codes. It can be installed into the device as a whole scan module (mounted by a metal bracket), or separately for application environments that have very limited space at the front end. Customers can embed the decoder board at another location and connect it to the scan engine through an industry standard flat cable. The decoder board can be connected to the device�s main board through a standard USB flat cable, which supports all USB interfaces such as USB Keyboard, USB HID and USB COM. DSE0420-D connects via a microUSB cable.
Features
- Scan engine can be installed with the decoder board as one module or separately
- Highly visible center cross with four corner dots aiming system
- Steady white illumination
- Snappy reading performance with high motion tolerance
- Excellent reading of 1D or 2D codes on print or displayed on mobile device or computer screens
- Low power consumption enables longer battery life
- Datalogic�s �Green Spot� technology for visual good-read feedback (optional)
- DSE0420-D Demo Kit available, features a trigger and interface board
Features
Connector 1
USB A
Product colour
Multicolour
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
0.025 kg
Product dimensions
Net Weight (Product, kg)
0.015000000000000001 kg
Technical details
Harmonized System (HS) code
84733020
Vendor information
Brand Name
Datalogic
Warranty
1 Year(s)
