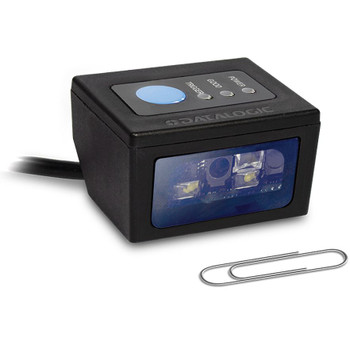

Datalogic Dsm0422-Sr. Type: Fixed Bar Code Reader Scanner Type: 2D Sensor Type: DSM0422-WA

Datalogic DSM0422-SR. Type: Fixed bar code reader, Scanner type: 2D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP54, Image formats supported: BMP, JPEG. Power source type: RS-232, USB, Power consumption (typical): 0.214 W, Power consumption (standby): 0.057 W. Weight: 131 g, Width: 47 mm, Depth: 27 mm BIG PERFORMANCE IN A SMALL PACKAGE The DSM04XX Fixed Scan Module is the solution you need for high performance fixed position scanning in a compact form factor. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium. RUGGED CONSTRUCTION The enclosure is constructed with high impact resin that is resistant to cleanings solvents and disinfectant solutions. IP54 particulate and water sealing allows rugged and dependable scanning performance. SIMPLE INTEGRATION The DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. Included mounting hardware allows mounting from all sides of the device at any angle. Interface options include USB, RS-232 or multi-interface models allowing 'plug-and-play' installation perfect for integrators who must support multiple platforms and applications.
Interfaces/Ports

Host InterfaceUSB

General Information

Product TypeBarcode Scanner
Manufacturer Part NumberDSM0422-WA
datalogic
ManufacturerDatalogic S.p.A
Product ModelDSM04XX
Product NameDSM04XX FIXED SCAN MODULE
Brand NameDatalogic

Technical Information

Barcode Symbology Supported
1D:
All standard 1D codes including:UPC/EAN/JAN
P2 / P5 add-ons
Code 39
Italian Pharmacode 39
Code 128
C128 ISBT
I 2 of 5
Standard 2 of 5
Interleaved 2 of 5
Industrial 2of 5
Datalogic 2of5
IATA; Code 11
Codabar
ABC Codabar
EAN 128
Code 93
MSI/Plessey
RSS-14
BC412
Databar Limited
Databar Omnidirectional
Databar Expanded
IATA
Trioptic
Matrix 2/5
Telepen
Composite codes CC-A
CC-B
CC-C

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code

Postal Codes:Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Korea Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Connectivity TechnologyCable
FeaturesBeep
Notification LED
Grayscale Image Capture
Scanning Distance599.44 mm
Light SourceLED
Image FormatsBMP
JPEG
Drop SpecificationWithstands repeated drops from 3 ft onto a concrete surface.

Image Sensor TypeImager
Illumination TypeLED
Scan ModeTrigger/Sense
Illumination ColorWhite
Scanning Capability1D
2D
Field of View (Horizontal)52??
Field of View (Vertical)40??
Reading Angle (Skew)60??
Reading Angle (Pitch)60??
Reading Angle (Roll)180??
Maximum Ambient Light100000 lux
Minimum Print Contrast25%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.51 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (DataMatrix)0.38 mm
Image Sensor Resolution1280 x 960


Physical Characteristics

Weight (Approximate)131 g
DurabilityWater Resistant
Drop Resistant
Dust Resistant
Impact Resistant
Form FactorFixed Mount
Product ColorBlack
Color FamilyBlack
RuggedYes
Product MaterialResin

Miscellaneous

Application/UsageHealthcare
Transportation
Ticketing
Self-checkout
Retail
Manufacturing
Logistics
Kiosk
Laboratory
Platform SupportedSmartphone
PC
Linux
Android
Windows
Ingress Protection (IP) RatingIP54
