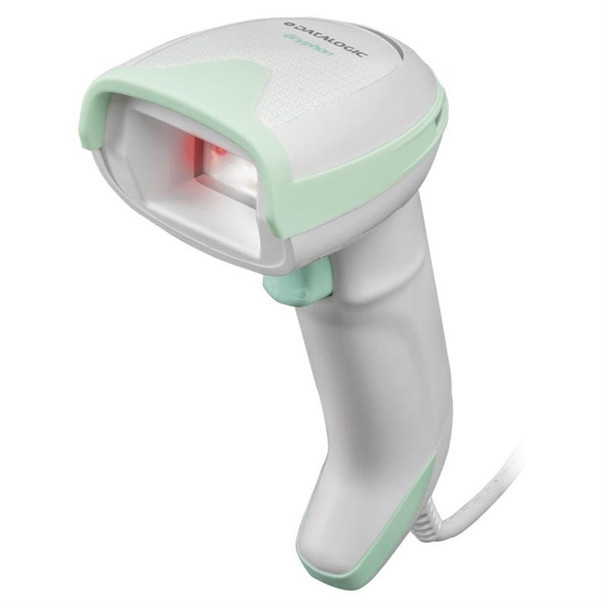

Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D White GD4520-HCK1-HD

Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D White

Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code. Connectivity technology: Wired, Standard interfaces: USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm

Scanning Type Characteristics of the device. Handheld bar code reader Scanner type Indicates the type of scanner this product is. 1D/2D 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code Optical sensor resolution (W x H) 1280 x 800 pixels Light levels (direct sunlight) 0 - 100000 lx Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. 650 nm Tilt reading angle 0 - 360- Pitch reading angle -65 - 65- Motion tolerance (cm/s) 88.9 Ports & interfaces Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. USB Performance International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". IP52 Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. Shock resistant Built-in display A display which is part of the product, so you do not need to attach another display. Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). TIFF, BMP, JPEG Product colour The colour e.g. red, blue, green, black, white. White
