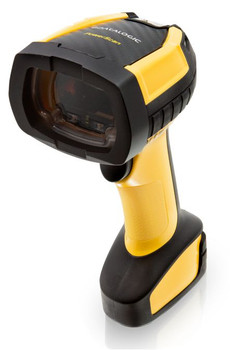

Datalogic PBT9600-HPRB. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Linea PBT9600-HPRB

Datalogic PBT9600-HPRB. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RS-232, USB, Wireless range: 100 m. Product colour: Black, Yellow, International Protection (IP) code: IP65, IP67. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3350 mAh. Width: 79 mm, Depth: 140 mm, Height: 198 mm ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS! The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities. MOBILITY ENHANCES PRODUCTIVITY The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System---. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth?- 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols. WIRELESS CHARGING The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
Interfaces/Ports

Host InterfaceUSB
Serial

Network & Communication

BluetoothYes
Radio FrequencyYes

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3350 mAh
Battery IncludedYes
Maximum Battery Recharge Time2.50 Hour

Physical Characteristics

Weight (Approximate)415 g
Form FactorHandheld
Length140 mm
Height198 mm
Width79 mm
RuggedYes

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar--- linear codes

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot Code

Postal Codes:Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Digital Watermarking:Digimarc Barcodes (HP and DC models)

Connectivity TechnologyWireless
Scanner RangeHigh Density
Drop SpecificationDrop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 ??C / 68 ??F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 ??C / -4 ??

Illumination TypeLED
Illumination ColorWhite
Scanning Capability1D
2D
Field of View (Horizontal)38??
Field of View (Vertical)24??
Reading Angle (Skew)52??
Reading Angle (Pitch)52??
Reading Angle (Roll)360??
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Maximum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (PDF417)0.25 mm
Image Sensor Resolution1280 x 800


General Information

Product TypeBarcode Scanner
Manufacturer Part NumberPBT9600HPRB
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product ModelPBT9600
Product NamePowerScan PBT9600 Barcode Scanner
Product LinePowerScan
Product Series9600
Brand NameDatalogic

Miscellaneous

Application/UsageAsset Tracking
Warehouse
Picking
Manufacturing
Logistics
Inventory
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP67
IP65
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)
