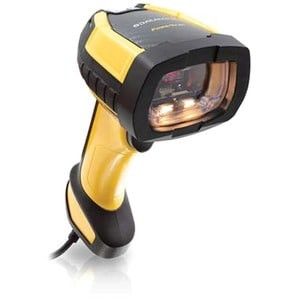

Datalogic PD9630-ARK1. Type: Handheld Bar Code Reader Scanner Type: 1D/2D Linear PD9630-ARK1

Datalogic PD9630-ARK1. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Yellow, International Protection (IP) code: IP65, IP67. Power source type: DC, Input voltage: 5 - 30 V. Weight: 318 g, Width: 79 mm, Depth: 140 mm ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS! The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications. THE BEST FEEDBACK TO THE OPERATOR The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses. Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).
Interfaces/Ports

Host InterfaceUSB
Serial

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberPD9630ARK1
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product ModelPD9630
Product NamePOWERSCAN 9600 PD9630 Barcode Scanner Kit
Product LinePowerScan
Product Series9600
Brand NameDatalogic

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar linear codes

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot Code

Postal Codes:Australian Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Portuguese Post
Postnet
Royal Mail Code (RM4SCC)
Swedish Post

Digital Watermarking:Digimarc Barcodes




Connectivity TechnologyCable
FeaturesVibration
Notification LED
Beep
Light SourceLED
Scanner RangeAuto Range
Drop SpecificationWithstands 50 drops from 2.5 m / 8.2 ft @ 20 ??C / 68 ??F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 ??C / -4 ??F

Scan PatternArea
Omni-directional
Image Sensor TypeImager
Illumination TypeLED
Scan ModeTrigger
Illumination ColorWhite
Cable Type IncludedUSB
Scanning Capability1D
2D
Reading Angle (Skew)52??
Reading Angle (Pitch)52??
Reading Angle (Roll)360??
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Air Electrostatic Discharge (+/-)20kV


Physical Characteristics

Weight (Approximate)318 g
DurabilityDust Resistant
Water Resistant
Form FactorHandheld
Length140 mm
Height190 mm
Width79 mm
Product ColorBlack
Yellow
Color FamilyDual Colour
RuggedYes

Miscellaneous

Application/UsageWarehouse
Industrial
Picking
Assembly Line
Component Tracking
Sorting
Inventory
Logistics
Manufacturing
Packing
Package Contents1 x POWERSCAN 9600 PD9630 Barcode Scanner
1 x USB Cable CAB-553

Environmentally FriendlyYes
Ingress Protection (IP) RatingIP67
IP65
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
