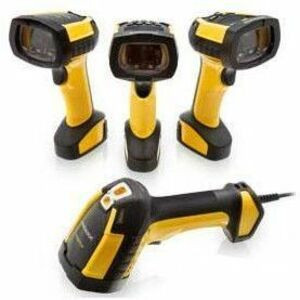

Datalogic PM9600-DKAR433RB. Type: Handheld Bar Code Reader Scanner Type: 1D/2D L PM9600-DKAR433RB

Datalogic PM9600-DKAR433RB. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 128, Code 39, GS1 DataBar, JAN, PDF417, UPC-A, UPC-E. Connectivity technology: Wireless, Standard interfaces: RF Wireless, RS-232, USB, Wireless range: 150 m. Product colour: Black, Yellow, International Protection (IP) code: IP65, IP67, Keys quantity: 16 keys. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3350 mAh. Weight: 455 g, Width: Industrial Handheld Auto Range Scanner with extra-long range capabilities and high flexibility ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS! The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away. AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions. MOBILITY ENHANCES PRODUCTIVITY The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic's proprietary STAR Cordless System--- or the new Bluetooth?- 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 family features Datalogic's Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
Network & Communication

Radio FrequencyYes

Power Description

Input Current770 mA
Standby Current140 mA

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3300 mAh
Battery IncludedYes
Maximum Battery Recharge Time3.20 Hour

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar--- linear codes.

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot Code

Postal Codes:Australian Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Portuguese Post
Postnet
Royal Mail Code (RM4SCC)
Swedish Post

Stacked Codes :EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Number of Keys16
Connectivity TechnologyWireless
FeaturesVibration
Scanning Distance19.99 m
Light SourceLED
Scanner RangeAuto Range
Drop SpecificationWithstands 50 drops from 2.5 m / 8.2 ft @ 20 ??C / 68 ??F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 ??C / -4 ??

Image Sensor TypeImager
Illumination TypeLED
Scan ModeTrigger
Illumination ColorRed
Cable Type IncludedSerial
Scanning Capability2D
1D
Reading Angle (Skew)60??
Reading Angle (Pitch)60??
Reading Angle (Roll)360??
Maximum Ambient Light100000 lux
Minimum Print Contrast20%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.51 mm
Minimum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (DataMatrix)2.54 mm
Image Sensor Resolution1280 x 800


Physical Characteristics

Weight (Approximate)445 g
Form FactorHandheld
Length139.7 mm
Height198.1 mm
Width78.7 mm
RuggedYes

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberPM9600DKAR433RB
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product ModelPM9600-AR
Product NamePowerScan PM9600-AR Barcode Scanner
Product LinePowerScan
Product Series9600
Brand NameDatalogic

Miscellaneous

Application/UsageLogistics
Inventory
Warehouse
Manufacturing
Industrial
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP65
IP67
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
