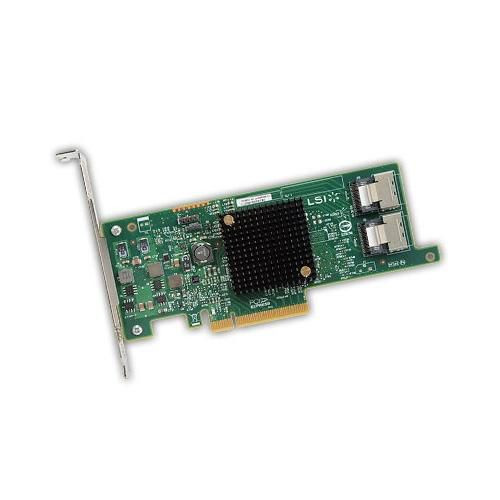

Dell 406-BBDM-RFB LSI 12Gb SAS 9300-8e HBA. 406-BBDM-RFB

For applications needing external storage connectivity, the LSI SAS 9300-8e 12Gb/s SAS Host Bus Adapter allows servers of any size to attach to over 1000 SAS or SATA end devices in external enclosures. Scale storage to support performance and capacity-intensive applications with 12Gb/s SAS and the flexibility to support 6Gb/s SATA drives.

Compatibility
This product is compatible with the following systems:
- PowerEdge R220
- PowerEdge R320
- PowerEdge R420
- PowerEdge R520
- PowerEdge R620
- PowerEdge R630
- PowerEdge R720
- PowerEdge R720XD
- PowerEdge R730
- PowerEdge R820
- PowerEdge R920
- PowerEdge T20
- PowerEdge T320
- PowerEdge T420
- PowerEdge T620
- PowerEdge T630

Design



Certification



EMC: Class B-US (CFR 47, P15B), ICES-00, V-3/02.04, EN55022/EN55024, AS/NZS 3548, N-B 2-0001-404, EN60950, WEEE


Internal



Yes


Mean time between failures (MTBF)



2800000 Hour


Product colour



Green, Stainless steel


RoHS compliance



Yes


Features



Bandwidth



9.6 Gbit/s


Data transfer rate (max)



8 Gbit/s


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-45 - 105 �C


Other features



Compatibility



PowerEdge R220 PowerEdge R320 PowerEdge R420 PowerEdge R520 PowerEdge R620 PowerEdge R630 PowerEdge R720 PowerEdge R720XD PowerEdge R730 PowerEdge R730XD PowerEdge R820 PowerEdge R920 PowerEdge T20 PowerEdge T320 PowerEdge T420 PowerEdge T620 PowerEdge T630


Package dimensions



Gross Weight (Package, kg)



0.3 kg


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCIe 3.0


External mini-SAS ports



8


Host interface



PCIe


Output interface



SAS


Product dimensions



Net Weight (Product, kg)



0.2 kg


System requirements



Linux operating systems supported



FreeBSD 6.3, FreeBSD 7.0, RedHat EL Linux 3 U9, RedHat EL Linux 4.0 U5, RedHat EL Linux 4.0 U6, RedHat EL Linux 4.0 U7, RedHat EL Linux 5.0, RedHat EL Linux 5.1, RedHat EL Linux 5.2, RedHat EL Linux 5.3, RedHat EL Linux 6.0, RedHat EL Linux 7.0, Solaris 10 U4, Solaris 10 U5, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3


Windows operating systems supported



Y, Yes


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Dell


Warranty



1 Year(s)
