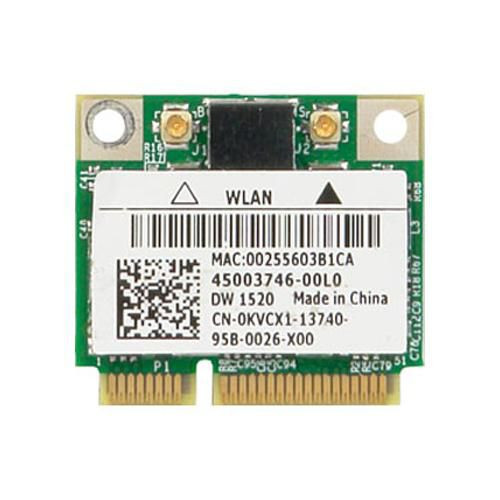

Dell 555-13078 Wireless Module 555-13078

The Dell� Wireless 1520 (11agn) WLAN Half mini-Card introduces a dual-band low-cost card supporting 802.11a/g/n networks. The Dell Wireless 1520 is based on the Dell Wireless 1510 card with a few improvements and fixes. It works in Windows XP, Windows Vista and Windows 7. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
- IEEE 802.11a operation (5-GHz frequency band)
- IEEE 802.11g operation (2.4-GHz frequency band)
- IEEE 802.11n operation (2.4-GHz frequency band and 5-GHz frequency band)
- Network data rate of up to 130 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels
- Unscheduled Automatic Power Save Delivery support
Compatible with:- Latitude E4310 / E5410 / E5510 / E6410 / E6410 ATG / E6510
- Precision M4500

Design



Component for



Notebook


Internal



Yes


Recommended usage



Notebook


Network



Data link protocols



IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n


Frequency range



2.4 - 5 GHz


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Other features



Compliance industry standards



IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n


Minimum system requirements



- Latitude E4310 / E5410 / E5510 / E6410 / E6410 ATG / E6510 - Precision M4500


Wireless connection



Yes


Wireless technology



802.11 a/b/g/n


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Ports & interfaces



Connectivity technology



Wireless


Host interface



Mini PCI


Interface



WLAN


Product dimensions



Net Weight (Product, kg)



0.3 kg


Vendor information



Brand Name


Dell


Warranty



6 Month(s)
