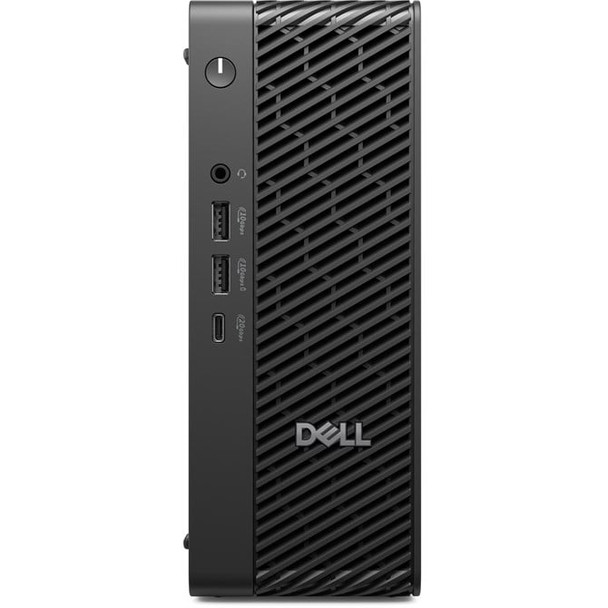

DELL Pro Max FCM2250 Intel Core Ultra 7 265 16 GB DDR5-SDRAM 512 GB SSD NVIDIA R D83J5

Engineered for those who demand exceptional power without sacrificing space, the Dell Pro Max Micro delivers top-tier speed and efficiency in a sleek, space-saving design.

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel Core Ultra 7


Processor generation

Intel Core Ultra (Series 2)


Processor model

The model number for the processor in a computer.

265


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads



Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.3 GHz


Performance cores

2


Efficient cores

8


Low Power Efficient-cores

2


Performance-core Max Turbo Frequency

5.3 GHz


Efficient-core Max Turbo Frequency

4.2 GHz


Low Power Efficient-core Max Turbo Frequency

2.4 GHz


Performance-core base frequency

2.1 GHz


Efficient-core base frequency

1.7 GHz


Low Power Efficient-core Base Frequency

700 MHz


Processor cache
MB


Number of processors installed

Number of processors in the product.

1


Processor base power
W


Maximum turbo power

57 W


Neural processor unit (NPU)


Neural processor unit (NPU)

Intel AI Boost


Sparsity support




Windows Studio effects support




AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

1 x 16 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM


Non-ECC




Memory data transfer rate

5600 MT/s


Storage


Total storage capacity

The total amount of data that can be stored on the device.

512 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Number of storage drives installed

Amount of storage drives built into the device.

1


Total SSDs capacity

512 GB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

512 GB


SSD memory type

TLC


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


M.2 SSD size

2280 (22 x 80 mm)


Graphics


Discrete graphics card




Discrete GPU manufacturer

NVIDIA


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

NVIDIA RTX A400


Discrete graphics card memory

4 GB


Discrete graphics memory type

GDDR6


Number of discrete graphics cards

1


On-board GPU manufacturer

Intel


On-board graphics card family

Intel- Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel- Graphics


Graphics card Mini DisplayPort ports quantity

4


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


LAN controller

Intel- I219-LM


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.





Network


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


WLAN controller manufacturer

Intel


WLAN controller model

Intel Wi-Fi 7 BE200


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Ports & interfaces


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB 3.2 Gen 2x2 Type-C ports quantity

1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

3


DisplayPort version

1.4a


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Combo headphone/mic port




Expansion slots


PCI Express x8 (Gen 4.x) slots

2


Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Micro PC


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Horizontal/Vertical


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Intel- vPro- Platform Eligibility




Performance


Audio chip

Realtek ALC3204


Audio system

System used to play music or speech.

High Definition Audio


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

Mini PC


Trusted Platform Module (TPM) version

2.0


Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Trial software

Activate Your Microsoft 365 For A 30 Day Trial


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

280 W


Power supply input voltage
0 - 240 V


Power supply input frequency

The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50/60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 65 ?C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

0 - 95%


Operating altitude

-15.2 - 3048 m


Non-operating altitude

-15.2 - 10668 m


Operating vibration

Environmental requirements for vibration in operating mode

0.66 G


Non-operating vibration

Environmental requirements for vibration in non-operating mode

1.3 G


Operating shock

Environmental requirements for optimal protection from impact in operating mode
0 G


Non-operating shock

Environmental requirements for optimal protection from impact in non-operating mode
0 G


Sustainability


Sustainability certificates

ENERGY STAR


Weight & dimensions


Width

The measurement or extent of something from side to side.

79.3 mm


Depth

The distance from the front to the back of something.
8 mm


Height

The measurement of the product from head to foot or from base to top.
6 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.54 kg


Packaging content


Mouse included on selected markets

Dell Optical Mouse-MS116 - Black


Keyboard included on selected markets

Dell Wired Keyboard - KB216 - UK (QWERTY) - Black


Cables included

AC


Carbon footprint


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.
3


Carbon emissions, manufacturing (kg of CO2e)

The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.

63.318


Carbon emissions, logistics (kg of CO2e)

The mean carbon emissions during the transportation of the product.

3.66


Carbon emissions, energy usage (kg of CO2e)

Use-phase carbon emissions from products that consume energy (fuels or electricity) during use.
4.741


Carbon emissions, end-of-life (kg of CO2e)

The mean carbon emissions related to the End-of-Life processing of products.

1.28


PAIA version

PAIA (Product Attribute to Impact Algorithm) tool for product carbon footprint calculations. The version of the PAIA tool (and year if available) used during carbon footprint calculation for a product.

GaBi version 1, 2024


Display


Display included

This product includes a display.
