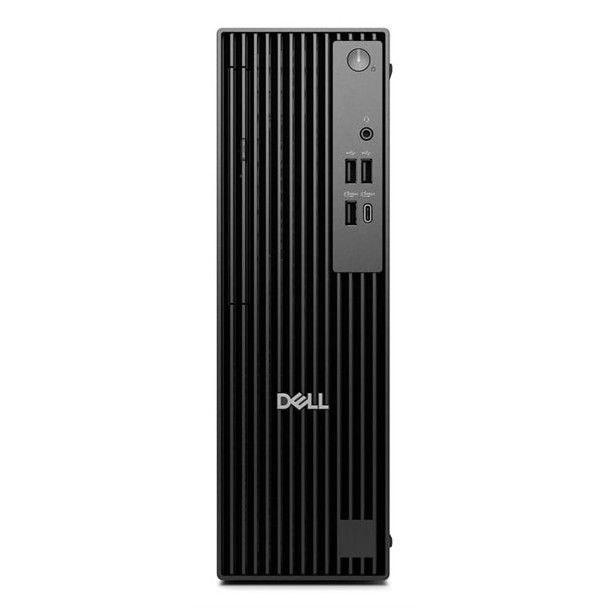

DELL Pro QCS1250 Intel? Core? I5 I5-14500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 JX4DR

Dell Pro Slim: A compact PC with a sleek design and enhanced thermals with Intel- Core- (14th Gen) processors or upgrade to Intel- Core- Ultra (Series 2) processors for enhanced AI performance.

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel- Core- i5


Processor generation

Intel- Core- i5 (14th gen)


Processor model

The model number for the processor in a computer.

i5-14500


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads



Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5 GHz


Performance cores

6


Efficient cores

8


Performance-core Max Turbo Frequency

5 GHz


Efficient-core Max Turbo Frequency

3.7 GHz


Performance-core base frequency

2.6 GHz


Efficient-core base frequency

1.9 GHz


Processor cache

24 MB


Processor cache type

Smart Cache


Number of processors installed

Number of processors in the product.

1


Processor base power

65 W


Maximum turbo power
4 W


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

1 x 16 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x DIMM


Non-ECC




Memory channels

Single-channel


Memory data transfer rate

4800 MT/s


Storage


Total storage capacity

The total amount of data that can be stored on the device.

512 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Number of storage drives installed

Amount of storage drives built into the device.

1


Total SSDs capacity

512 GB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

512 GB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


Graphics


Discrete graphics card




On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


On-board GPU manufacturer

Intel


On-board graphics card family

Intel- UHD Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 770


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


LAN controller

Intel- I219-LM


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Ports & interfaces


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


DisplayPort version

1.4a



Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Combo headphone/mic port




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Number of rear USB ports

4


Number of front USB ports

4


Number of SATA III connectors

Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

2


Expansion slots


PCI Express x1 (Gen 3.x) slots

2


PCI Express x16 (Gen 3.x) slots

Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.

1


Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Slim PC


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Horizontal/Vertical


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Intel- vPro- Platform Eligibility




Performance


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Audio chip

Realtek ALC3204


Audio system

System used to play music or speech.

High Definition Audio


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

PC


Trusted Platform Module (TPM) version

2.0


Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Trial software

Activate Your Microsoft 365 For A 30 Day Trial


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
0 W


Power supply input voltage

90 - 264 V


Power supply input frequency

The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

47/63 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.
- 35 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 65 -C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

0 - 95%


Operating altitude

-15.2 - 3048 m


Non-operating altitude

-15.2 - 10668 m


Operating vibration

Environmental requirements for vibration in operating mode

0.66 G


Non-operating vibration

Environmental requirements for vibration in non-operating mode

1.3 G


Operating shock

Environmental requirements for optimal protection from impact in operating mode
0 G


Non-operating shock

Environmental requirements for optimal protection from impact in non-operating mode
0 G


Sustainability


Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold


Doesn't contain

PVC/BFR


Weight & dimensions


Width

The measurement or extent of something from side to side.

95 mm


Depth

The distance from the front to the back of something.

293 mm


Height

The measurement of the product from head to foot or from base to top.

303.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

5.89 kg


Packaging content


Mouse included on selected markets

Dell Optical Mouse-MS116 - Black


Keyboard included on selected markets

Dell Wired Keyboard - KB216 - UK (QWERTY) - Black


Cables included

AC


Carbon footprint


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.
3


Carbon emissions, manufacturing (kg of CO2e)

The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.

91.117


Carbon emissions, logistics (kg of CO2e)

The mean carbon emissions during the transportation of the product.

9.943


Carbon emissions, energy usage (kg of CO2e)

Use-phase carbon emissions from products that consume energy (fuels or electricity) during use.

58.517


Carbon emissions, end-of-life (kg of CO2e)

The mean carbon emissions related to the End-of-Life processing of products.

3.42


PAIA version

PAIA (Product Attribute to Impact Algorithm) tool for product carbon footprint calculations. The version of the PAIA tool (and year if available) used during carbon footprint calculation for a product.

GaBi version 1, 2024


Display


Display included

This product includes a display.
