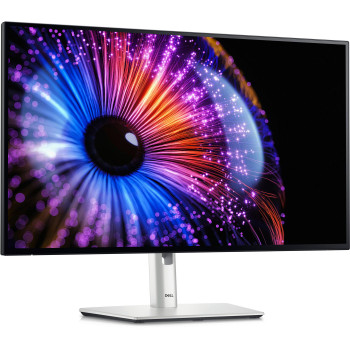

DELL UltraSharp U2724DE computer monitor 68.6 cm 27 2560 x 1440 pixels Quad HD L DELL-U2724DE

Experience a new level of visual comfort and productivity with this hub monitor certified by T?V for 5-star eye comfort. Designed with extensive connectivity and the power of Thunderbolt 4.

Specs




Display


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

68.6 cm (27")


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

2560 x 1440 pixels


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Quad HD


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:9


Display technology

The technology used in the display e.g. plasma, LED.

LCD


Panel type

IPS


Backlight type

Edge LED


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




Display brightness (typical)

Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment.

350 cd/m?


Response time

The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

8 ms


Anti-glare screen

Always gives an optimal view, even in direct sunlight.




Screen shape

Flat


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2048 x 1080, 2560 x 1440


Supported video modes

The video modes that can be displayed by the device.

480p, 576p, 720p, 1080i, 1080p


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
00:1


Maximum refresh rate
0 Hz


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
8?


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
8?


Display number of colours

1.07 billion colours


Response time (fast)

5 ms


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.2331 x 0.2331 mm


Pixel density
8.97 ppi


Viewable size, horizontal

The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image.

59.7 cm


Viewable size, vertical

33.6 cm


Digital horizontal frequency

30 - 178 kHz


Digital vertical frequency

48 - 120 Hz


Display diagonal (metric)

This is the size of the display screen, measured diagonally.

68.47 cm


High Dynamic Range (HDR) supported




Surface hardness

3H


Colour depth

8 bit


Colour gamut standard

DCI-P3


Colour gamut

98%


sRGB coverage (typical)
0%


Performance


NVIDIA G-SYNC




AMD FreeSync

The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.




Flicker-free technology




Low Blue Light technology




Multimedia


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Built-in camera

The product has an integrated camera.




Design


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Product colour

The colour e.g. red, blue, green, black, white.

Black, Silver


Front bezel colour

Black


Feet colour

The colour of the feet, which are the projecting part on which a device/piece of furniture, or each of its legs, stands.

Silver


Ports & interfaces


Built-in USB hub

Whether or not the device features a USB hub to connect more than one other device via USB.




USB upstream port type

USB Type-C


Number of upstream ports

1


Number of USB Type-C upstream ports quantity

1


USB Type-A downstream ports quantity

4


USB Type-C downstream ports quantity

1


USB Type-C DisplayPort Alternate Mode




USB Power Delivery (USB PD)




USB Power Delivery up to

90 W


HDMI

HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.




HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


DisplayPort version

1.4


Thunderbolt 4 ports quantity

2


Headphone out

The socket for connecting headphones to the device.




Microphone in

The socket where a microphone is connected to the device.




PC Audio in

The socket (port) for the PC audio input.




HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

1.4


AC (power) in




Network


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.





Ergonomics


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.
0 x 100 mm


Cable management

Description of improved cable management




Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Height adjustment

The part of the device that can be adjusted to change the height.




Adjustable height (max)
cm


Pivot




Pivot angle

-90 - 90?


Swivelling




Swivel angle range

-45 - 45?


Tilt adjustment

The tilt, which means the angle at which the device is pointing (up or down), can be changed.




Tilt angle range

-5 - 21?


On Screen Display (OSD)




Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Power


Energy efficiency class (SDR)

F


Energy efficiency class (HDR)

Not available


Energy consumption (SDR) per 1000 hours

24 kWh


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

24.4 W


Power consumption (standby)

The amount of electricity that is consumed when the product is on standby.

0.5 W


Power consumption (max)

The maximum amount of power used by the device.

225 W


Power consumption (off)

0.3 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Input current

2.65 A


Power supply type

The type of power supply which this product uses.

Internal


European Product Registry for Energy Labelling (EPREL) code
91641


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 ?C


Operating relative humidity (H-H)
- 80%


Storage relative humidity (H-H)

5 - 90%


Operating altitude

0 - 5000 m


Non-operating altitude

5000 - 12192 m


Weight & dimensions


Width (with stand)

612.2 mm


Depth (with stand)
2.3 mm


Height (with stand)

535.6 mm


Weight (with stand)

6.98 kg


Width (without stand)

612.2 mm


Depth (without stand)

50.1 mm


Height (without stand)

352.5 mm


Weight (without stand)

5.23 kg


Bezel width (side)

7.75 mm


Bezel width (top)

7.75 mm


Bezel width (bottom)

9.1 mm


Packaging data


Package weight

Weight of the packaged product.
.2 kg


Packaging content


Stand included




Cables included

AC, DisplayPort, Thunderbolt, USB Type-A to USB Type-C


Power adapter included




Remote control included

Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.




Stylus included




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Sustainability


Sustainability compliance




Sustainability certificates

ENERGY STAR, TCO


Doesn't contain

PVC/BFR


Carbon footprint


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

649


Total carbon emissions, standard deviation (kg of CO2e)

The total estimated standard deviation of carbon emission calculated over various lifecycle stages per unit i.e., measured in kilograms CO2e. Deviations can be caused due to the use of default, assumed values during calculations.
2


Carbon emissions, manufacturing (kg of CO2e)

The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.

412.27


Carbon emissions, logistics (kg of CO2e)

The mean carbon emissions during the transportation of the product.

48.98


Carbon emissions, energy usage (kg of CO2e)

Use-phase carbon emissions from products that consume energy (fuels or electricity) during use.
1.7


Carbon emissions, end-of-life (kg of CO2e)

The mean carbon emissions related to the End-of-Life processing of products.

5.74


PAIA version

PAIA (Product Attribute to Impact Algorithm) tool for product carbon footprint calculations. The version of the PAIA tool (and year if available) used during carbon footprint calculation for a product.

1.3.2, 2022


Other features


RJ-45 ports quantity

1


Compliance certificates

RoHS
