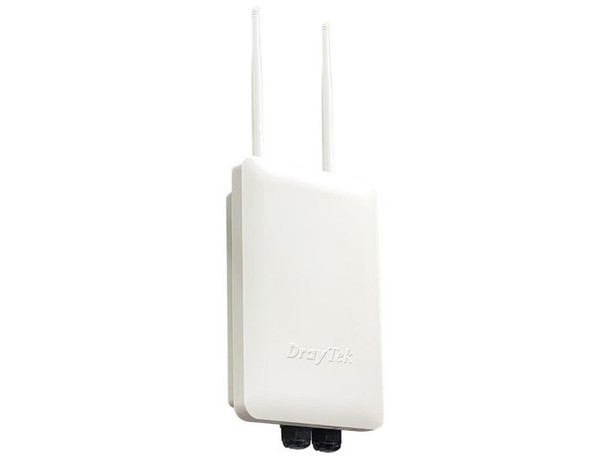

Draytek VAP918R-DE-AT-CH Vigorap 918R Wireless Access VAP918R-DE-AT-CH

DrayTek VigorAP 918R Series is a compact outdoor wireless access point. It provides combined link rate up to 1.3 Gbps and a capacity of 200+ active users. The series includes an RPD model, which is equipped with a PoE-Out port to deliver connectivity and power to another network device, such as an IP camera, and the internal 5GHz directional patch antenna can enhance the wireless performance for long-range point-to-point connection.

Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network. Learn more

Weather Resistant
VigorAP 918R Series can withstand rain, heat, and cold to deliver internet connectivity to the outdoor environments.

Built-in Sensor
Built-in temperature and humidity sensor helps keep monitoring on temperature and humidity, and sends out SMS/Email alerts once reaching threshold.

Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards.

Airtime Fairness
Equalize the transmission time of each client so the legacy devices won't slow everyone down.

Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.

Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.

Local RADIUS Server
User profile database for local and external 802.1x authentication.

Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.

PoE Power Supply
Simplify the infrastructure by getting data and power through a single cable.

Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more

Central AP Management
Manage, maintain, and monitor VigorAP 918R Series from the DrayTek routers. Learn more

Antenna



Antenna direction type



Omni-directional


Antenna gain level (max)



5 dBi


Antenna type



External


Antennas quantity



2


Design



International Protection (IP) code



IP67


Placement



Pole, Wall


Product colour



White


Reset button



Yes


Features



2.4 GHz



Yes


5 GHz



Yes


6 GHz



No


Airtime Fairness (ATF)



Yes


BeamForming



Yes


Ethernet LAN data rates



10, 100, 1000


Fit AP mode features



Mesh networking


Maximum data transfer rate



867 Mbit/s


Maximum data transfer rate (2.4 GHz)



400 Mbit/s


Maximum data transfer rate (5 GHz)



867 Mbit/s


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Number of users



256 user(s)


Wi-Fi Multimedia (WMM)/(WME)



Yes


Management features



Firmware upgradeable



Yes


Web-based management



Yes


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


WAN connection



Ethernet (RJ-45)


Power



AC input voltage



48 - 56 V


Input current



0.4 A


Power consumption (max)



18 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



24.3 cm


Product Height



7.2 cm


Product Width



16.1 cm


Protocols



DHCP client



Yes


DHCP server



Yes


Security



Auto Wireless Distribution System (WDS)



Yes


MAC address filtering



Yes


Remote Authentication Dial-In User Service (RADIUS)



Yes


Security algorithms



WDS, WEP, WPA2, WPA3, WPS


Service Set Identifier (SSID) features



Multiple SSIDs


Vendor information



Brand Name


Draytek


Warranty



1 Year(s)
