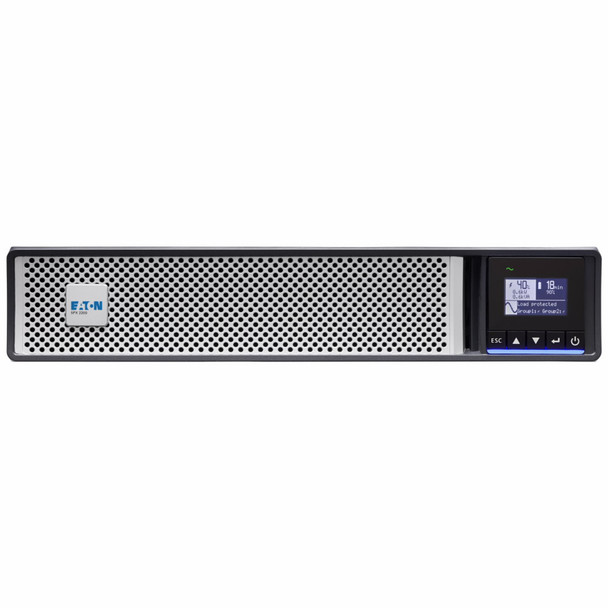

Eaton 5PX2200IRTNG2BS Line-Interactive 2.2 kVA 2200 W Sine 150 V 294 V 5PX2200IRTNG2BS

The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.

Design


Display type

LCD


Cable length

1.8 m


Product colour

Black, Silver


Form factor

Rackmount/Tower



Weight & dimensions


Height

240 mm


Width

588 mm


Depth

770 mm


Weight

28.7 kg



Packaging content


Cables included

Input power cable, Serial, USB cable


Rack mount kit

Yes


Quick installation guide

Yes



Sustainability


Sustainability compliance

Yes


Sustainability certificates

ENERGY STAR



Battery


Number of batteries supported

6


Battery technology

Sealed Lead Acid (VRLA)


Automatic battery test

Yes


Battery capacity

7 Ah


Battery voltage
V



Certificates


Compliance certificates

CE, REACH, RoHS


Certification

IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC



Features


Waveform

Sine


Output operation voltage (max)

240 V


Input frequency

47/70 Hz


Output power capacity

2.2 kVA


Output power

2200 W


Input operation voltage (min)
0 V


UPS topology

Line-Interactive


Output frequency

50/60 Hz


Noise level

40 dB


Output power factor

1


Input operation voltage (max)

294 V


Output operation voltage (min)
0 V


Number of input phases

1


Power protection features

Overdischarge


Automatic Voltage Regulation (AVR)

Yes


Number of output phases

1


Power factor

1



Operational conditions


Operating temperature (T-T)

0 - 40 C


Operating relative humidity (H-H)

0 - 90


Operating altitude

0 - 3000 m



Ports & interfaces


AC outlet types

C13 coupler, C19 coupler


Serial interface type

RS-232


Serial interface

Yes


Serial ports quantity

1


AC outlets quantity
AC outlet(s)


Power plug

C20 coupler


USB port

Yes


USB port type

USB Type-B


USB 2?0 ports quantity

1
