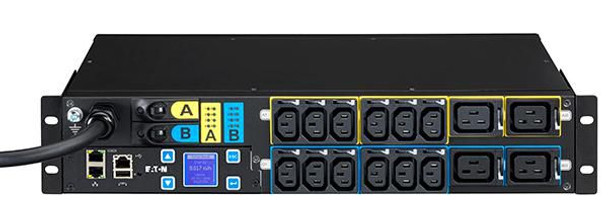

Eaton EMAH06 Emah28 Power Distribution EMAH06

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (�1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Design



Cable colour



Black


Display



LCD


Form factor



Rackmount


Mounting



Horizontal


PDU types



Managed


Product colour



Black


Rack capacity



2U


Rack mounting



Yes


Type



Single-phase


Features



Cable length



3 m


LED indicators



Yes


Management features



Firmware upgradeable



Yes


Firmware upgradeable via



Network, USB


Management protocols



SNMP, Telnet


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.29 kg


Packaging content



Cables included



LAN (RJ-45)


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



16 AC outlet(s)


Ethernet LAN (RJ-45) ports



1


Output connections



12 x C13 & 4 x C19


Power plug



IEC 60309


Serial ports quantity



1


Power



AC input frequency



50 Hz


Maximum current



32 A


Maximum input current per phase



32 A


Maximum power



7400 Watt


Nominal input voltage



230 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



8.7 cm


Product Height



44.5 cm


Product Width



22.5 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Eaton


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



225 x 87 x 445 mm
