EATON

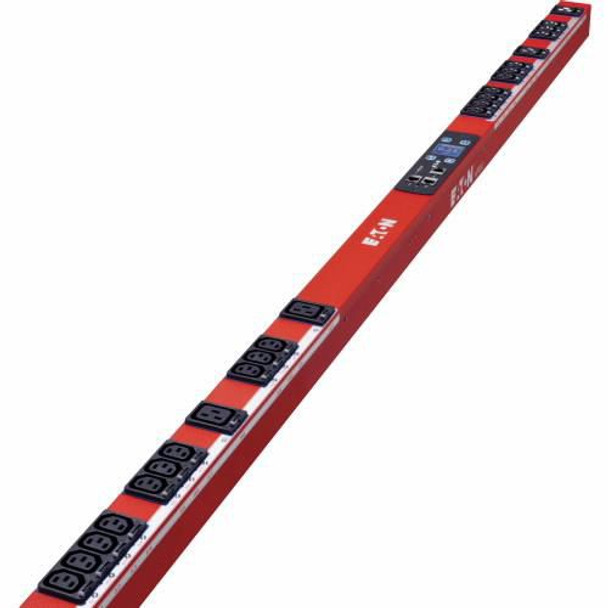

Eaton EMIB05-30R Power Distribution Unit Pdu EMIB05-30R
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EMIB05-30R
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Eaton Metered Input rack PDUs give you remote monitoring capabilities and provide access to your power data whenever you want it, wherever you are. You also can monitor your critical equipment within each colour-coded outlet section from a single interface and achieve 1% billing grade accuracy. With all of the features of the Basic PDU, 0U, 1U and 2U Metered Input rackmount PDUs provide you with the ability to reduce infrastructure costs by daisy-chaining up to eight metered PDUs to share the same network connection and single IP address. The Metered Input PDU also simplifies load balancing and helps prevent overloads.
Network connectivity & LCD
Eaton Metered Input ePDU provides network connectivity and advanced LCD for easier configuration. ePDU G3 has Hot-Swap network components � update or change without changing the outlet state.
Billing Grade Accuracy
IEC +/-1% Billing Grade Accuracy: Meter your energy consumption (kWh) plus V, W and A extremely accurately.
Current Metering
Input and Phase Metering, Circuit Breaker Current Metering.
Design
Display
LCD
Mounting
Vertical
PDU types
Metered
Product colour
Red
Rack capacity
0U
Type
Single-phase
Features
Cable length
3 m
Certification
CE IEC 60950-1 EN 55024:2010
Management features
Management protocols
SNMP
Supported network protocols
HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
Operational conditions
Operating temperature (T-T)
0 - 60 �C
Package dimensions
Gross Weight (Package, kg)
1.29 kg
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
24 AC outlet(s)
Power plug
IEC 60309
Serial ports quantity
1
Power
AC input frequency
50 - 60 Hz
Maximum current
32 A
Maximum input current per phase
32 A
Maximum power
7400 Watt
Nominal input voltage
200 - 240 V
Product dimensions
Net Weight (Product, kg)
0.99 kg
Product Depth
115 cm
Product Height
5.3 cm
Product Width
5.2 cm
Vendor information
Brand Name
Eaton
Warranty
1 Year(s)
