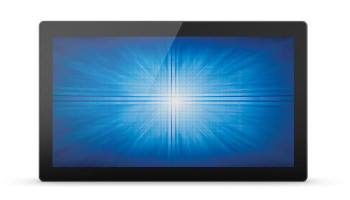

Elo Touch Solutions Elo 2094L 20" Class Open-Frame Lcd Touchscreen Monitor 16:9 E331214

Elo 2094L 20" Class Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 49.5 cm (19.5") Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colours - 3,000:1 - 250 cd/m?? - LED Backlight - HDMI - USB - VGA - DisplayPort - Black The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch?- single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro--- PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. Viewing angle of 178?? (h) x 178?? (v), for sharp colors and graphics in both portrait and landscape modes Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities Display Port and VGA video interfaces
Touchscreen Information

Touchscreen TypeTouchPro Projected Capacitive
TouchscreenYes
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10

Video

Contrast Ratio3,000:1
Brightness250 cd/m??
Color Supported16.7 Million Colours
Maximum Resolution1920 x 1080
Standard Refresh Rate75 Hz

Interfaces/Ports

USBYes
HDMIYes
HDMI Version1.3
VGAYes
DisplayPortYes
USB StandardUSB 2.0
DisplayPort Version1.1a

Technical Information

Aspect Ratio16:9
Response Time20 ms
FeaturesOn-screen Display (OSD)
Mount TypeFlush Mount
Viewable Screen Size49.5 cm (19.5")
Screen ModeFull HD
Horizontal Viewing Angle178??
Vertical Viewing Angle178??
Backlight TechnologyLED
Panel TechnologyThin Film Transistor (TFT)
Horizontal Frequency30 kHz to 82 kHz
Curved ScreenNo
Maximum Refresh Rate75 Hz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class20"


Miscellaneous

Certifications & StandardsAustralia RCM
Canada cUL, IC
China CCC
Europe CE TUV
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE
Russia EAC

Environmentally FriendlyYes
TAA CompliantNo
Mean Time Between Failures (MTBF)5.7 Year
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)

Power Description

Input Voltage12 V DC 0 V AC
230 V AC
Operating Power Consumption20 W
Standby Power Consumption1.50 W
Off-Mode Power Consumption500 mW
Energy Consumption per Year29 kWh

General Information

Product TypeOpen-frame LCD Touchscreen Monitor
Manufacturer Part NumberE331214
elotouch
Packaged Quantity1
ManufacturerElo Touch Solutions, Inc
Product Model2094L
Product Name2094L 19.5" Open Frame Touchscreen (Rev B)
Brand NameElo

Physical Characteristics

Weight (Approximate)4.70 kg
Height285 mm
Width479.3 mm
Depth40.4 mm
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Product ColorBlack
Color FamilyBlack
