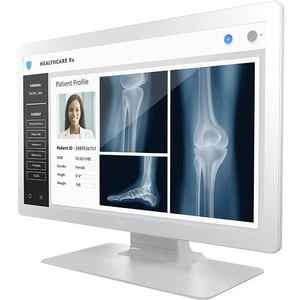

Elo Touch Solutions Elo 2403Lm 24" Class Lcd Touchscreen Monitor 16:9 16 Ms 60.5 E381452

Elo 2403LM 24" Class LCD Touchscreen Monitor - 16:9 - 16 ms - 60.5 cm (23.8") Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colours - 250 cd/m?? - LED Backlight - Speakers - HDMI - USB - VGA - White - USB Hub DICOM Medical Grade Touchscreen Monitors The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. IP-54 Rating Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution. IEC 60601 IEC 60601 compliant power supply included. DICOM 14 Ensures accurate and uniform image reproduction for reliable review. Integrated Touch TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves. Built-to-Last Backed by Elo's 3-year standard warranty with optional EloCare service offerings. DICOM 14 -Designed for Consistent Image Review Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve. Enhancing Clinical Workflow with Touch From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience. Purpose-built for Healthcare The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers. Medical Device Ready With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical. Flexible Mounting Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts. Privacy Matters Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data. Ergonomic Optional handles can be added to easily move or rotate the display to a comfortable orientation.
Audio

SpeakersYes

Built-in Devices

Built-in DevicesUSB Hub

Interfaces/Ports

USBYes
HDMIYes
VGAYes

Touchscreen Information

Touchscreen TypeTouchPro Projected Capacitive
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10

Power Description

Frequency50 Hz
60 Hz
Energy Efficiency Class (SDR) (from 1st March, 2021)E
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March, 2021)18 kW

Technical Information

Aspect Ratio16:9
Response Time16 ms
FeaturesOnScreen Control
Dust Resistant
Anti-glare
On-screen Display (OSD)
Mount TypePole Mount
Wall Mountable
Viewable Screen Size60.5 cm (23.8")
Screen ModeFull HD
Horizontal Viewing Angle178??
Vertical Viewing Angle178??
Backlight TechnologyLED
Panel TechnologyThin Film Transistor (TFT)
Horizontal Frequency30 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
Screen Size Class24"
Ingress Protection (IP) RatingIP54
Impact Protection (IK) RatingIK06
Response Time Details16 ms Typical


Video

Brightness250 cd/m??
Color Supported16.7 Million Colours
Maximum Resolution1920 x 1080
Native Contrast Ratio1,000:1

Miscellaneous

Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

General Information

Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberE381452
elotouch
ManufacturerElo Touch Solutions, Inc
Product Model2403LM
Product Name2403LM 24'' Medical Grade Touchscreen Monitor
Product Series03
Brand NameElo

Physical Characteristics

Weight (Approximate)6.69 kg
Height354.1 mm
Width574.5 mm
Depth42.9 mm
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Product ColorWhite
Color FamilyWhite
