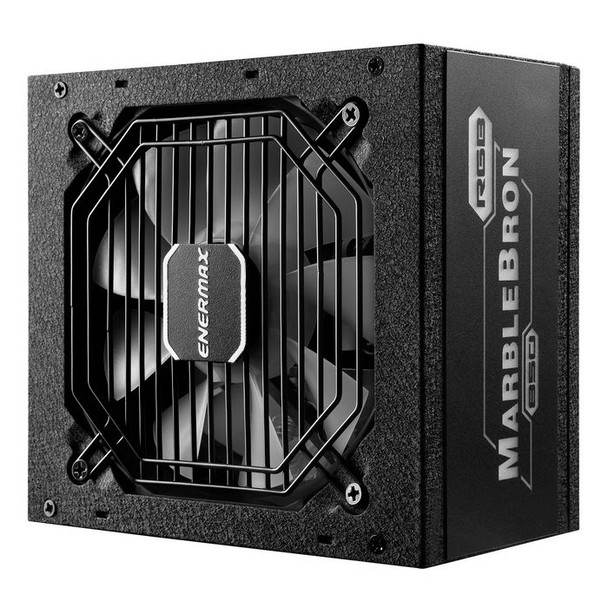

Enermax EMB850EWT-RGB Marblebron Power Supply Unit EMB850EWT-RGB

850 WATT POWER SUPPLY, 140MM CHASSIS IN-DEPTH

- 850 watt output power supports high-end graphic cards
- Compact size design, easily install in main stream chassis

80 PLUS Bronze certified with 88% efficiency @50% load

Reduce unnecessary power consumption and excess heat to conserve energy to reduce carbon footprint and lower electric bill

ENERGY CONSERVATION

Meet 2013 Erp Lot 6 of EU Energy Efficiency standard

120mm high-pressure fan

Generates a compressed air stream to rapidly cool down components

SAC (Smart Airflow Control) design

Regulates noise levels to inaudible 14dB(A) at lower loads

Semi-modular design low-profile black flat cables

- Connect only the cables you need
- Highly flexible and easy to assemble
- Easy to bend and storage inside the case
- Make cable management easier and improve the airflow inside the PSU-shroud design chassis

High-quality Japanese 105�C electrolytic capacitors

Provide long-term durability and reliability to ensure PSU have longer lifespan and avoid buying new one in short-term

DC to DC design with 12V single rail

Delivers stable DC output and supports high-end graphic cards and processors

Multiple circuitry protection of OVP, UVP, OPP, SCP and OTP

PSU will shut down immediately in any dangerous situation to prevent the system from breaking down and keeping all the components intact

RGB FUNCTION

- One button to turn on the RGB lighting effects
- Built-in 14 smart lighting modes
- Two ways to light it up by M/B sync and built-in button

Design



Cooling type



Active


Fan diameter



12 cm


Illumination



Yes


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Depth (package,cm)



9.5 cm


Gross Weight (Package, kg)



2.08 kg


Height (package,cm)



21.1 cm


Width (package,cm)



24.8 cm


Performance



80 PLUS certification



80 PLUS Bronze


Certification



80 PLUS BRONZE


Mean time between failures (MTBF)



160000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Supported motherboard form factors



ATX


Ports & interfaces



CPU power cable length



65 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



60 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



4


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



150


Peripheral (Molex) power connectors (4-pin)



1


SATA power cable length



450


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



840 Watt


Combined power (+3.3V)



130 Watt


Combined power (+5V)



130 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



88 %


Input current



11-5.5 A


Max output current (+12V)



70 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Maximum input current (@110V)



8 A


Maximum input current (@220V)



4 A


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Overheating, Over voltage, Under voltage


Total power



850 Watt


Product dimensions



Net Weight (Product, kg)



1.6 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Enermax


Warranty



1 Year(s)
