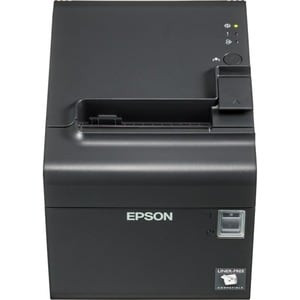

Epson C31C412682. Print Technology: Direct Thermal Maximum Resolution: 203 X 203 C31C412682

Epson C31C412682. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 90 mm/sec. Supported paper width: 80 mm. Connectivity technology: Wired. Product colour: Grey As the TM-L90LF prints both liner-free labels and receipts in order to improve the user's operational efficiency and total cost of ownership (TCO). As the printer works with adhesive-backed media, users are able to accurately label food and drink orders - thereby increasing customer satisfaction and user accuracy. Order processing speed With print speeds of up to 170mm/sec, the potential benefits to the user are clear: fast order (and checkout) processing, faster drive-through services and improved customer satisfaction. Built-in taken sensor The next label prints automatically as the printed one is taken. Flexible installation Users can position the printer in the most convenient spot, thanks to a choice of vertical, horizontal or wall-mounted (using optional bracket) installation. Saves paper The TM-L90LF features improved paper reduction functionality that includes back feed capability, line feed adjustment and a smaller sized font. It can be set up to cut through adhesive areas, which saves paper. To further reduce paper consumption, the automatic top margin reduction function prints the top of the next receipt before cutting the current one when printing continues after auto cutting. It supports 1.5-inch, 2-inch or 3-inch media widths.
Power Description

Power SourcePower Adapter

Interfaces/Ports

USBYes
Serial PortYes
USB HostYes

Miscellaneous

Platform SupportedPC
Country of OriginChina
Noise Level52 dB

Cutter

Cutting MethodAutomatic
CutterYes
Cutter Life1000000 Cuts
Cut TypePartial Cut

Technical Information

Application/UsageDesktop
Recommended UseLabel Print
Print TechnologyDirect Thermal
Print Head Life75KM
InstallationHorizontal/Vertical
Print Color CapabilityMonochrome
Mean Time Between Failures (MTBF)41.1 Year
Mean Cycles Between Failures (MCBF)35000000
Character Sets128 x 11 Graphic
37 International
95 Alphanumeric
ANK
Maximum Print Resolution (dpi)203 x 203


Physical Characteristics

Form FactorWall Mount
Height203 mm
Width140 mm
Depth148 mm
Product ColorDark Grey
Color FamilyGrey

General Information

Product TypeDirect Thermal Printer
Manufacturer Part NumberC31C412682
Manufacturer Website Addresshttp://www.epson.co.uk
ManufacturerEpson Corporation
Product ModelTM-L90LF (682)
Product NameLiner-Free Thermal Label Printer
Product SeriesTM-L90
Brand NameEpson

Media Types & Handling

Maximum Roll Diameter102 mm
Media TypeBlack Mark
Label
Receipt
Liner-free Label
Media SensorBlack Mark Sensor
Cover Open Sensor
Paper End Sensor
Maximum Label Width80 mm
