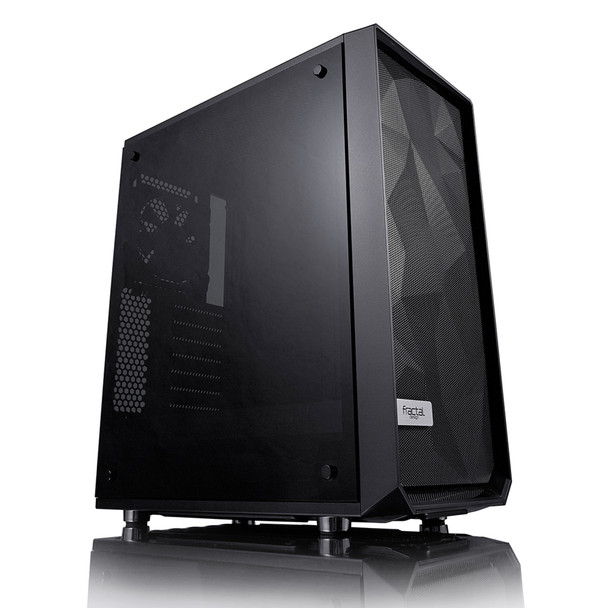

Fractal Computer Cases Meshify C Computer Cases FD-CA-MESH-C-BKO-TG

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.

An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.

When performance is top priority and compromise is not an option, Meshify has you covered in style.

Features


Streamlined high-airflow design


The performance and capacity of a larger tower in a remarkably compact mid-tower size


Newly designed angular mesh front panel maximizes air intake


Tinted tempered glass side panel for a clean looking exterior with full interior visibility


Distinctive new styling with stealthy black-on-black aesthetic


Flexible storage options with room for up to 5 drives


Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation


Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise


Open interior layout creates an unobstructed airflow path from front intake to rear exhaust


Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access


Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior


Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing



Design


Product colour

Black


Cable management

Yes


Maximum CPU cooler height
.5 cm


Number of expansion slots

7


LED indicators

Yes


Maximum PSU length
.5 cm


Number of 3?5" bays

2


Type

PC


Supported motherboard form factors

ATX, ITX, micro ATX


Side window

Yes


Number of 2?5" bays

3


Maximum graphics card length

31.5 cm


Form factor

Midi Tower


Anti-dust filter

Yes



Cooling


Cooling

Yes


Bottom fans diameters supported
0 mm


Front fans diameters supported
0,140 mm


Rear radiator sizes supported
0 mm


Rear fans installed

1x 120 mm


Number of rear fans supported (max)

1


Rear fans diameters supported
0 mm


Front radiator sizes supported
0,140,240,280,360 mm


Number of bottom fans supported (max)

1


Top radiator sizes supported
0,240 mm


Front fans installed

1x 120 mm


Number of front fans supported (max)

3


Number of top fans supported (max)

2


Top fans diameters supported
0,140 mm



Storage


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

453 mm


Width

217 mm


Depth

409 mm


Weight

6.5 kg



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

84733080



Other features


Easy to customize

Yes



Power supply


Supported power supply form factors

ATX


Power supply included

No



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


Audio input

Yes


Audio output

Yes



Packaging data


Package height

484 mm


Package depth

543 mm


Package width

295 mm


Package weight

7.9 kg
