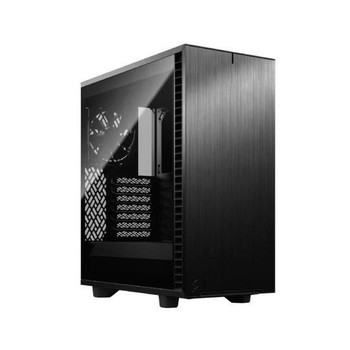

Fractal Design Define 7 Compact Midi Tower Black FD-C-DEF7C-03

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

A cleaner look

Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top - or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

Concealed storage

You can fit two 2.5"/3.5" drives beneath the shroud and two SSDs behind the backplate.

More in store

A pair of SSDs are easily mounted straight on the PSU shroud.

Front, top and base

Easy-to-clean high airflow nylon filters.

Open access

Remove the entire top to build and route with zero hindrance

Features


Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards


Fits GPUs up to 360 mm with a 240 mm radiator in the top


Top panel effortlessly swaps from solid steel to filtered ventilation



Design


Product colour

Black


Material

Aluminium, Steel, Tempered glass


Rack mounting

No


Maximum CPU cooler height

16.9 cm


Number of expansion slots

7


On/off button

Yes


Suitable for

Home/Office


LED indicators

Yes


Maximum PSU length

20 cm


Number of 3?5" bays

2


Type

PC


Supported motherboard form factors

ATX, micro ATX, Micro-ITX


Side window

Yes


Reset button

Yes


Number of 2?5" bays

2


Maximum graphics card length

34.1 cm


Form factor

Midi Tower


Anti-dust filter

Yes



Cooling


Top radiator sizes supported

240 mm


Front fans installed

1x 140 mm


Front fans diameters supported

120,140 mm


Rear radiator sizes supported

120 mm


Rear fans installed

1x 120 mm


Number of rear fans supported (max)

1


Number of front fans supported (max)

3


Number of top fans supported (max)

2


Top fans diameters supported

120,140 mm


Rear fans diameters supported

120 mm


Front radiator sizes supported

280,360 mm



Storage


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

474 mm


Width

210 mm


Depth

427 mm


Weight

8.76 kg



Logistics data


Harmonized System (HS) code

84733080



Power supply


Number of power supply units

1


Supported power supply form factors

ATX


Power supply included

No



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Audio input

Yes


Audio output

Yes


USB 2?0 ports quantity

2



Packaging data


Package height

521 mm


Package depth

536 mm


Package width

310 mm


Package weight

11 kg
