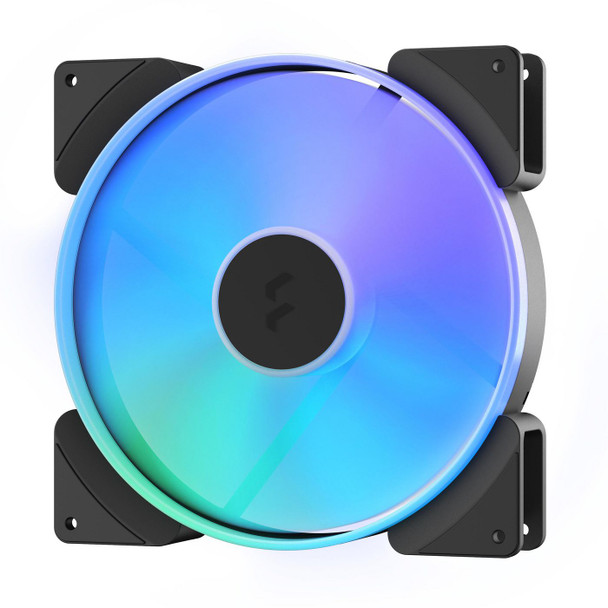

Fractal Design FD-FAN-PRI-AL18-PWM Prisma Al-18 Pwm Computer FD-FAN-PRI-AL18-PWM

The Prisma AL-18 is a powerful 180 mm ARGB fan that packs a mean punch in the airflow department. Massive blades, stout 38 mm thickness, and wide 300-1200 RPM range with PWM control allow the AL-18 to yield remarkably high airflow while remaining exceptionally quiet.

PWM precision
- PWM control with a wide 300-1200 RPM speed range ideal for radiators
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence

Manually Controllable
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
- Black sleeved power cables offer an extra touch of style

Maximum compatibility
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability

Smooth operation
Integrated synthetic rubber corners nullify fan vibrations

Chained connections
Chain RGB cables to simplify wiring and run multiple fans or additional RGB devices from a single connector

Design



Fan connector



4-pin


Illumination LED



Yes


Number of fan blades



7


Number of fans



1 fan(s)


Number of LEDs



12


Product colour



Black, White


Package dimensions



Depth (package,cm)



18.2 cm


Gross Weight (Package, kg)



0.68 kg


Height (package,cm)



4 cm


Width (package,cm)



22.7 cm


Packaging content



Number of screws



12


Package type



Hanging box


Screws included



Yes


Performance



Airflow



249.56 m�/hr


Bearing type



Sleeve bearing


Compatible processor series



Not supported


Fan diameter



18 cm


Maximum air pressure



2.5 mmH2O


Maximum airflow



146.8 cfm


Mean time between failures (MTBF)



90000 Hour


Minimum air pressure



0.44 mmH2O


Minimum airflow (imperial)



43.1 cfm


Noise level (high speed)



37.4 dB


Noise level (low speed)



14.9 dB


Pulse-width modulation (PWM) support



Yes


Quantity per pack



1 pc(s)


Rotational speed (max)



1200 RPM


Rotational speed (min)



300 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Maximum current



0.35 A


Rated current



0.6 A


Rated voltage



5 V


Voltage



6 - 12 V


Product dimensions



Net Weight (Product, kg)



0.52 kg


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)


Weight & dimensions



Cable length



1 m


Fan dimensions (W x D x H)



180 x 180 x 38 mm


Fan weight



521 g
