Fractal Design

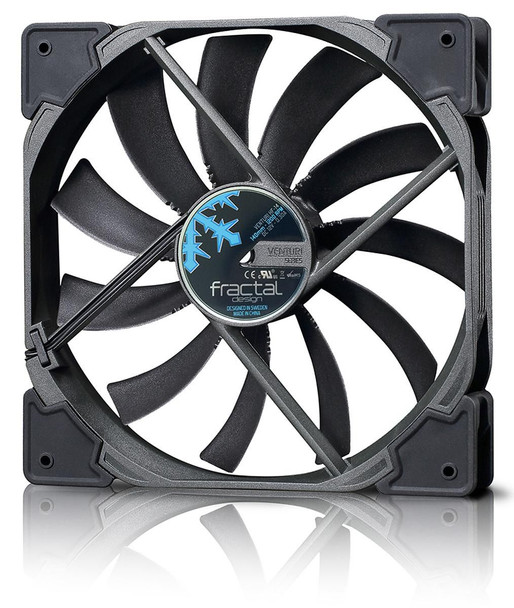

Fractal Design FD-FAN-VENT-HF14-BK Venturi Hf-14 Computer Case FD-FAN-VENT-HF14-BK
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- FD-FAN-VENT-HF14-BK
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Venturi High Flow Series fans, HF-12 and HF-14, are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios.
Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air compared to other fans at the same, minimal noise level.
The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
Key features
- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing
- Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplasticpolymer with fan geometry that is optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
- Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence.
- Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear.
- Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts
- Includes a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient and quiet fan environment.
- Delivers high precision due to high grade materials used, permitting the distance between the blades and frame to be as small as 1.2mm, contributing to a higher performance fan
- Featuring a powerful motor to maintain a reliable speed
- Comes with a low-speed adapter, for reducing the speed without the use of a fan controller
- Includes vibration-dampening corners, from solid high-quality synthetic rubber on the fans
- 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.
- Screws pass through the rubber only, not through plastic, therefore eliminating the chance of noise derived from rattling when in use
- Available in 120mm and 140mm fan sizes
Design
Fan connector
3-pin
Product colour
Black, Grey
Other features
Mounting hole pattern (W x D)
125 x 125 mm
Package dimensions
Depth (package,cm)
14.2 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
3 cm
Width (package,cm)
16.7 cm
Performance
Airflow
200.8 m�/hr
Fan diameter
14 cm
Maximum air pressure
0.95 mmH2O
Maximum airflow
118.2 cfm
Mean time between failures (MTBF)
150000 Hour
Minimum air pressure
0.59 mmH2O
Minimum airflow (imperial)
78.5 cfm
Noise level (high speed)
26.5 dB
Noise level (low speed)
18.3 dB
Rotational speed (max)
1200 RPM
Rotational speed (min)
850 RPM
Suitable location
Computer case
Type
Fan
Power
Maximum current
0.3 A
Power supply
2.2 Watt
Voltage
12 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
14 cm
Product Height
2.5 cm
Product Width
14 cm
Technical details
Bearing technology
FDB
Vendor information
Brand Name
Fractal Design
Warranty
1 Year(s)
Weight & dimensions
Cable length
0.5 m
Fan thickness
2.5 cm
