Fractal Design

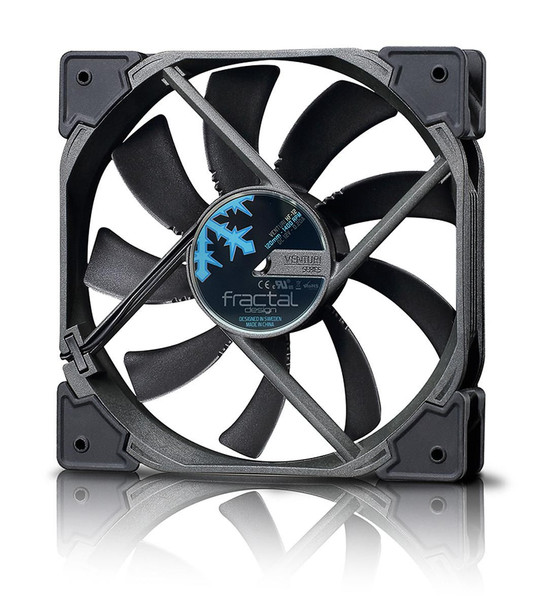

Fractal Design FD-FAN-VENT-HP12-PWM-BK Venturi Hp-12 Pwm Computer FD-FAN-VENT-HP12-PWM-BK
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- FD-FAN-VENT-HP12-PWM-BK
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Venturi High Flow Series fans, HF-12 and HF-14, are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios.
Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air compared to other fans at the same, minimal noise level.
The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
- Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
- Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplasticpolymer
- Fan geometry is optimized for a ground-breaking airflow, perfect for low-restriction usage scenarios such as computer case ventilation and low-density heatsinks or radiators.
- Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
- Featuring a powerful motor to maintain a reliable speed and a low-speed adapter for reducing the speed without the use of a fan controller
- 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screw spacing). This enables the use of 140mm fans on many CPU coolers.
- Available in 120mm and 140mm fan sizes
Design
Fan connector
4-pin
Product colour
Black, Grey
Other features
Mounting hole pattern (W x D)
105 x 105 mm
Package dimensions
Depth (package,cm)
12.2 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
3 cm
Width (package,cm)
14.2 cm
Performance
Airflow
104.3 m�/hr
Fan diameter
12 cm
Maximum air pressure
2.3 mmH2O
Maximum airflow
61.4 cfm
Mean time between failures (MTBF)
150000 Hour
Noise level (high speed)
31.7 dB
Noise level (low speed)
10 dB
Rotational speed (max)
1800 RPM
Rotational speed (min)
400 RPM
Suitable location
Computer case
Type
Fan
Power
Maximum current
0.2 A
Power supply
1 Watt
Voltage
12 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
12 cm
Product Height
2.5 cm
Product Width
12 cm
Technical details
Bearing technology
FDB
Vendor information
Brand Name
Fractal Design
Warranty
1 Year(s)
Weight & dimensions
Cable length
0.5 m
Fan thickness
2.5 cm
